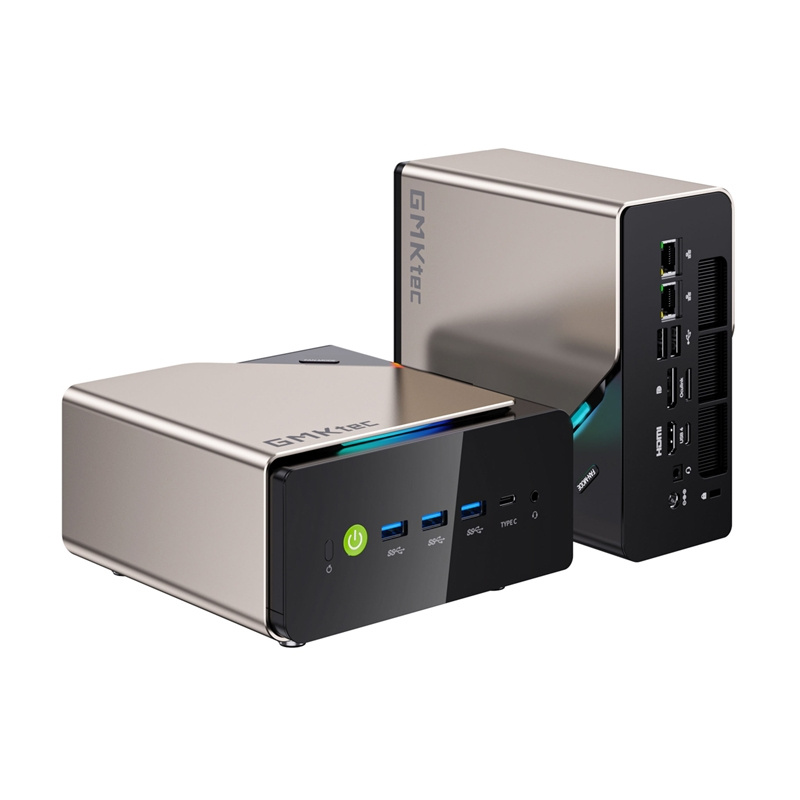

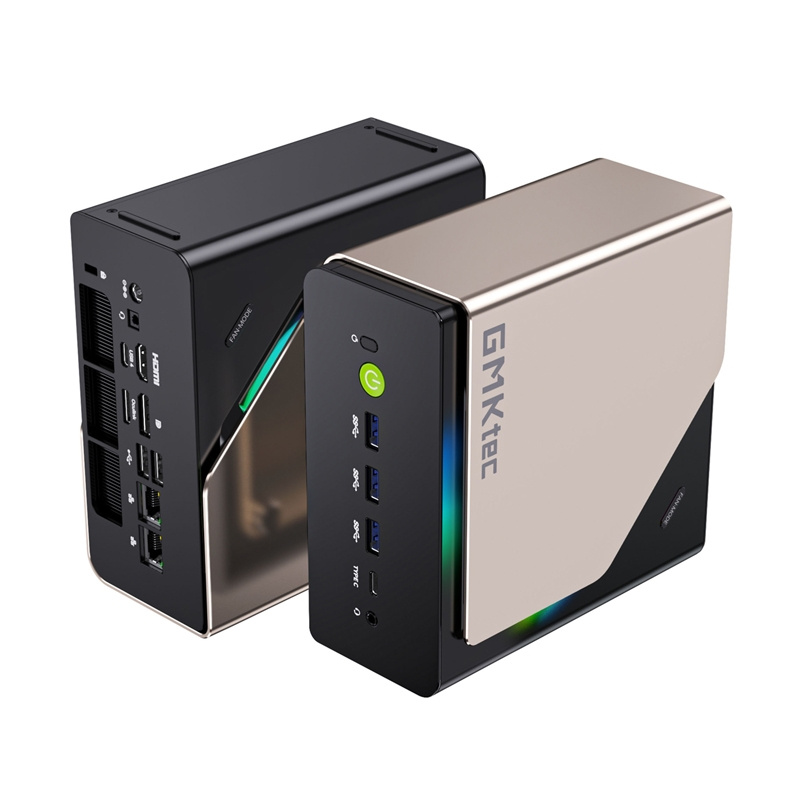

GMKtec EVO-T1 Mini PC - Intel Core Ultra 9 285H - 64GB RAM + 1TB SSD - Windows 11 Pro

GMKtec EVO-T1 Mini PC - Intel Ultra 9 Power, 64GB RAM and 1TB SSD for Ecommerce

Discover the GMKtec EVO-T1, a compact mini PC that doesn't compromise on performance. Equipped with the powerful 16-core Intel Core Ultra 9 285H processor, 64GB of DDR5 RAM and a blazing-fast 1TB SSD, this mini PC is the ideal solution for intensive multitasking, advanced graphics and gaming. Thanks to the dedicated NPU, PCIe 4.0 slots and full connectivity, the EVO-T1 is designed for the most demanding users in the e-commerce sector.

Intel Core Ultra 9 285H processor: Uncompromising performance

The beating heart of the EVO-T1 is the Intel Core Ultra 9 285H, a 16-core, 22-thread processor based on the 6P-Core + 8E-Core + 2LP E-Core architecture, built with TSMC N3B technology. With 24MB of cache and a 45W TDP, this chip achieves computational performance of up to 99 TOPS, excelling in extreme multitasking. In the Cinebench 2024 Multi-Core benchmark, it scores 1,048 points, surpassing well-known competitors such as the AMD Ryzen 9 8945HS.

Dedicated AI unit for Artificial Intelligence

The NPU integrated in the processor offers 13 TOPS of AI computing power, significantly accelerating tasks such as video editing or the use of voice assistants. This translates into more efficient operation, lower energy consumption and lower heat emission, ensuring greater longevity and stability.

Intel Arc 140T Graphics: Vivid Details and Fluidity

The EVO-T1 is equipped with the Intel Arc 140T GPU with 4GB of GDDR6 memory and a performance of 4.8 TFLOPS FP32. It supports XeSS technology to increase the fluidity of gameplay by up to 40% and allows 1080p resolutions without compromise. It speeds up rendering in applications such as Premiere Pro and allows the local generation of AI images (e.g. Stable Diffusion) in about 15 seconds for 512x512 images.

Maximum bandwidth with OcuLink PCIe Gen4 x4

A distinctive feature of this model is the OCuLink PCIe Gen4 x4 port, which offers an exceptional 64 Gbps bandwidth for almost lossless communication with external graphics cards. Exceeding 40 Gbps of USB4 and Thunderbolt 4, OcuLink guarantees a GPU efficiency of more than 95%. Note that this connector does not support hot-plugging.

Top capacity and speed: 64GB DDR5 RAM and expandable SSDs

The device has 64 GB of dual-channel DDR5 RAM (2x32 GB SO-DIMM) at 5600 MT/s, offering higher performance than DDR4. For storage, there are three M.2 2280 PCIe 4.0 slots that allow the installation of SSDs up to a total capacity of 24TB. With read speeds of up to 7,000 MB/s, the EVO-T1 handles large files with ease, ideal for complex ecommerce workflows.

Multi-Monitor Support up to 8K

The mini PC supports the simultaneous connection of four screens with resolutions up to 8K at 60 Hz. It offers an HDMI 2.1 port, DisplayPort 1.4 and two USB4.0 ports for an immersive visual experience, perfect for analyzing data and managing complex product catalogs.

Cutting-edge wireless connectivity: WiFi 6 and Bluetooth 5.2

Thanks to WiFi 6 support, the computer offers data transfer speeds twice as fast as previous generations, ensuring smooth streaming and low latency in games. Bluetooth 5.2 ensures stable connections with wireless accessories, essential for an orderly work environment.

Ports at will: Extended connectivity for every need

The GMKtec EVO-T1 has a rich set of ports: on the front panel there are 3 USB 3.2 (10 Gbps), 1 USB4.0 (power, data, video) and 3.5 mm audio jack. On the back there are another USB 4.0 port, two USB 2.0, HDMI 2.1, DisplayPort 1.4, OCuLink PCIe Gen4 x4, and 2 2.5G LAN ports.

Advanced cooling system for stable performance

The EVO-T1 uses a double cooling system with VC heat pipes and two fans, which reduces temperatures by up to 30%. The 360° air circulation ensures quiet and stable operation even under heavy load, preserving the integrity of the components for prolonged use.

Contents of the pack

• GMKtec EVO-T1
• Power supply
• Power cable
• HDMI cable
• VESA bracket
• Viti
• User manual
