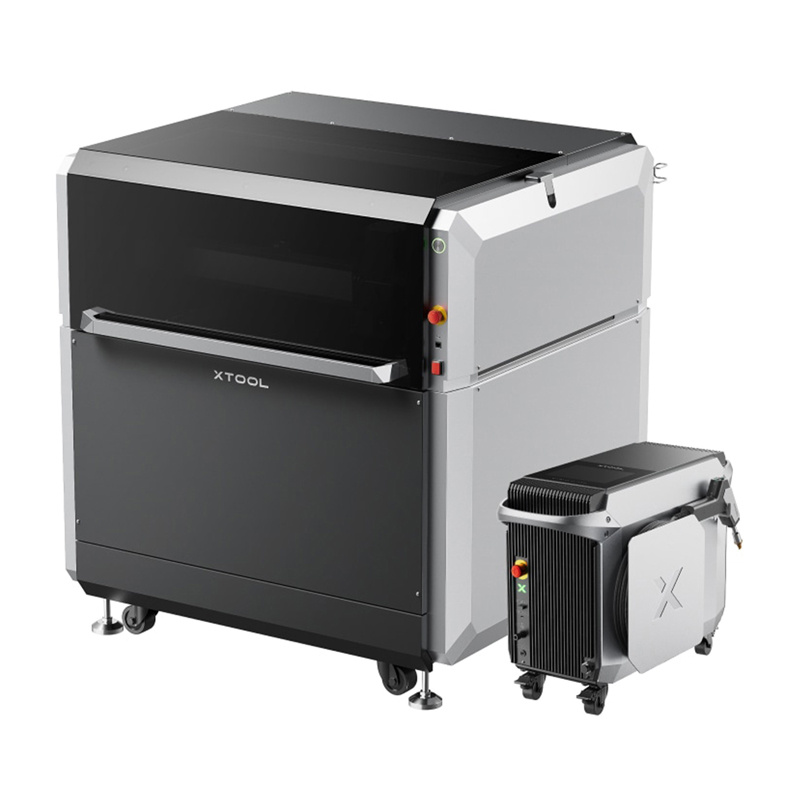

XTool MetalFab 1200W CNC Laser Cutting and Welding Machine - Professional Metalworking Solution

XTool MetalFab 1200W Laser CNC Welding and Cutting Machine

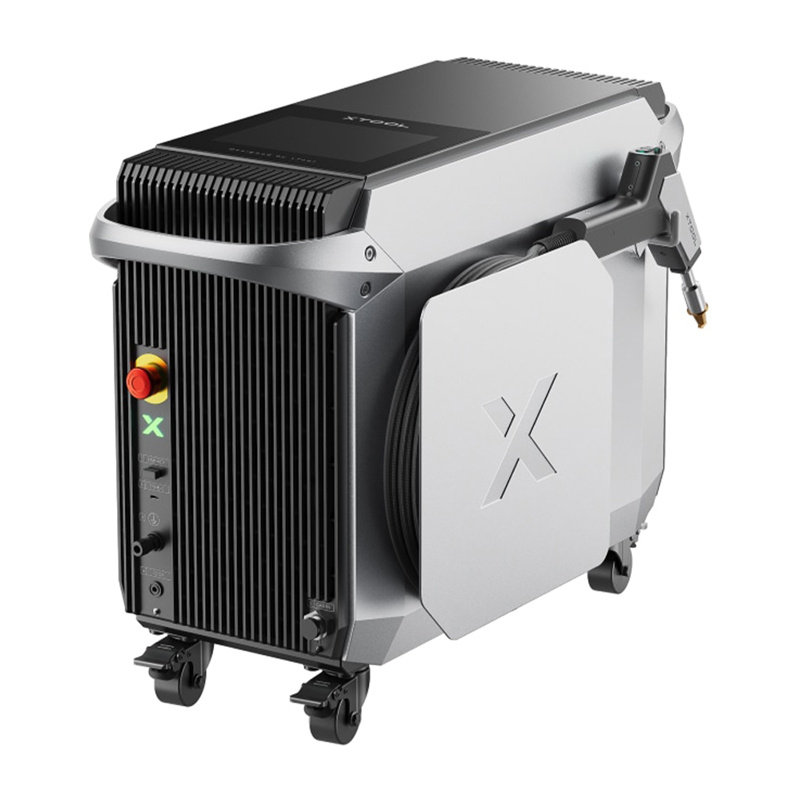

The XTool MetalFab 1200W is an advanced laser welding machine that combines three processes in a single device: welding, metal cutting and surface cleaning (including rust removal). You can also combine it with the included CNC (Computerized Numerical Control) cutter, which offers even greater capabilities. With 1200 watts of power, the device guarantees fast and accurate results and its intuitive operation makes it suitable for both professional workshops and hobbyists.

A complete workshop in a single machine

The XTool MetalFab laser welding machine combines welding, cutting and cleaning functions in a single machine and, when combined with a CNC cutting machine, also offers CNC cutting and cleaning capabilities. The system supports continuous, spot and pulse welding, allowing precise process control for a variety of applications: from the processing of delicate jewelry components to robust industrial structures.

Industrial technology

MetalFab uses industrial-grade Coherent chips that efficiently convert electrical energy into a powerful 1,200 watt laser beam with a wavelength of 1080 nm. Thanks to this technology, the device offers stable and precise cutting and welding. The system manages thicknesses from 0.2 mm to 5 mm and is suitable for a variety of metal materials such as stainless steel, carbon steel, brass and aluminum.

Precision welding regardless of material

Fiber laser technology minimizes thermally altered zones to ≤ 0.05 mm, allowing precise welding of thin metals without deformation. The high power ensures rapid metal melting, and the solution produces deep and tight welds regardless of the material or type of joint, ensuring consistent and reliable quality.

Smooth, clean and impeccable cut

The 1200 W high energy fiber laser easily cuts carbon steel up to 10 mm thick in a single pass. With a minimum thermally altered zone and high power, it offers precise cutting results, providing smooth and clean surfaces without deforming thin metals and reducing the need for additional finishes.

Technologies to improve accuracy

The secret of precision cutting lies in the technologies used, which work together to ensure maximum accuracy. VibeFreeCut™ integrates advanced motion control algorithms with system recognition technology to eliminate vibrations in real time. FlexiTrack™ continuously monitors the distance between the laser head and the metal surface in real time, automatically adjusting the Z axis. And ObstacleFree™ has a special obstacle avoidance algorithm to ensure continuous operation and equipment safety.

Work faster and more efficiently

Laser technology allows for fast and precise work, minimizing defects and reducing rework. The system achieves cutting speeds of 15.75 ips (inches per second) and is up to eight times faster than TIG (Tungsten Inert Gas) welding. It also has an ultra-low rework rate and zero wait times for cooling. All this allows you to complete any type of project in no time!

Dual cameras: intelligent vision, precise cut

With a 16 MP panoramic camera and artificial intelligence (AI) algorithms, the system automatically analyzes materials and creates optimal cutting layouts, just a click away! As a result, the material utilization rate reaches up to 98.7%. Forget plastic waste! In addition, the close-up camera provides precise positioning with a central deviation of less than 0.2 mm, ensuring exceptional accuracy. Such a solution is ideal even for small items.

Try the available software

The available software offers parameter configuration with one click, without the need to test materials. You don't have to waste time anymore: simply select the right material and get the optimal settings quickly. In addition, the Smart Flow Cutting mode connects line segments in the same direction for continuous cutting, minimizing unnecessary movements and increasing productivity by up to 50%. Also try the aiMake function, which creates ready-to-use prompt-based patterns in seconds.

Convenient touch control

An 8-inch touchscreen with an intuitive interface makes the welding machine easy to operate. It offers 108 ready-to-use material parameters and allows you to easily switch between the three welding modes. You can also use it to refine and save custom settings.

Highest safety standards with 10 functions

The XTool MetalFab is CE, FCC and FDA certified, meeting strict quality standards. The system is also equipped with 10 safety functions, including an emergency stop button, real-time temperature monitoring over 3 zones, closing detection of the lid and drawers, detection of the exhaust fan and a cover with an OD5+ optical filter (optical density 5+ filter to protect against laser radiation), among others.

Impressive service life

High-quality industrial-grade materials, Coherent chip, intelligent thermal control and high-performance cooling ensure that the XTool MetalFab offers stable performance even at extreme temperatures from -10°C to 40°C. An accurate design minimizes the risk of overheating, ensuring long-term reliability during intensive use. The lifespan of the device exceeds 10,000 hours!

inclusive

• XTool MetalFab Laser Welding Machine
• Wire feeder
• Wire feeder cable
• Wire guide cable
• 1mm stainless steel wire
• 0.8 mm/1.0 mm drag roller
• 1.2 mm/1.6 mm drag roller
• 1.2/1.6 mm wire feeder nozzle
• Cutting nozzle
• Welding nozzle (for autogenous welding)
• Cleaning nozzle
• Lens shield (replacement) x5
• Protective goggles
• Heat resistant gloves
• Tube (outer diameter: 10 mm)
• Power cable
• Sensor cable
• 304 stainless steel plate (thickness: 2 mm) x4
• dongle
• USB flash drive
• 2.5 mm hexagonal wrench
• 2mm hexagonal wrench
• Round cotton buds
• Sharp cotton buds

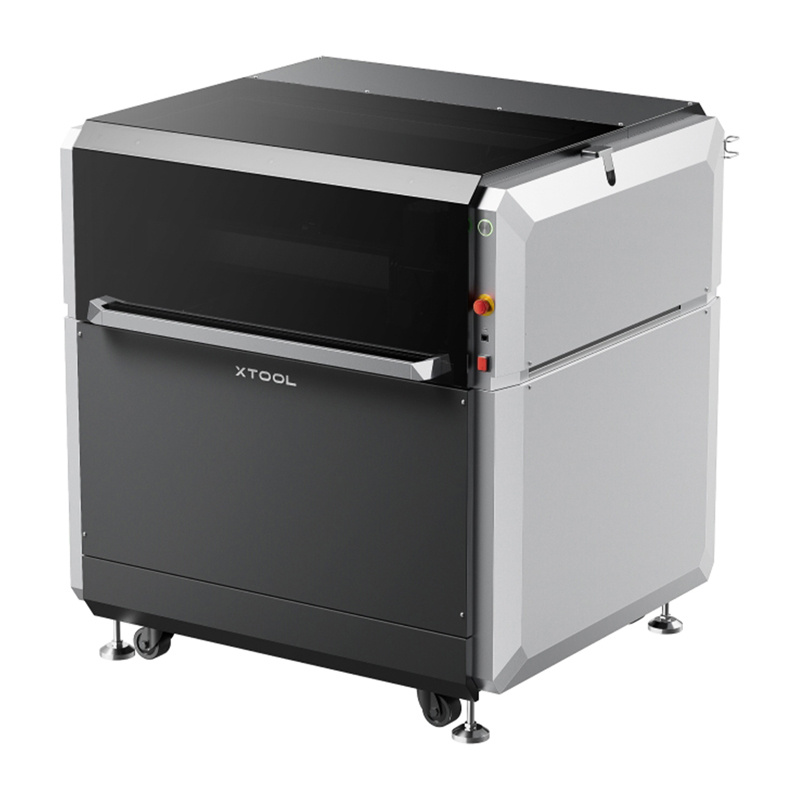

• CNC cutter
• Cleaning nozzle
• Telescopic cutting nozzle
• Cutting nozzle
• Ceramic ring
• Power cable
• Communication cable
• Strip x5
• Z shaped wrench
• External antenna
• Cable mounting block
• Hook
• Laser setting board + red swab
• Livella
• Computer connection cable
• 3mm hexagonal wrench
• 4mm hexagonal wrench
• Spanner
• Accessory box
• Screw M4*30 x15
• Screw M4*10 x5
• Screw M6*12 x10
• Camera calibration plate
• Metal sheets
• Clamp
• Base plate
• Suction fan
• Smoke exhaust pipe (smoke exhaust pipe)
• Safety instructions
• Quick guide
