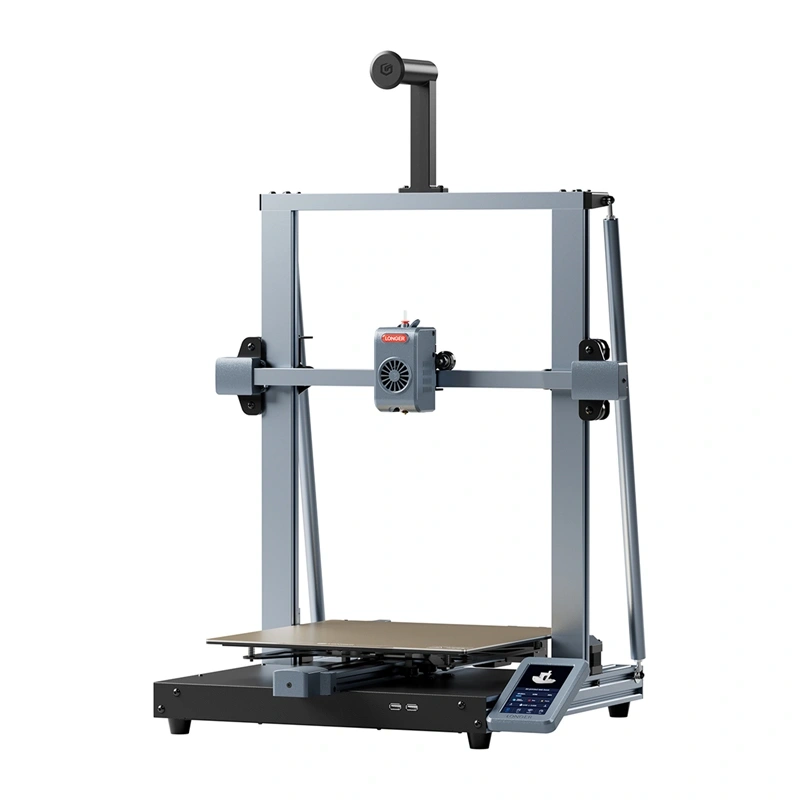

LONGER LK10 Plus 3D Printer

Longer LK10 Plus 3D Printer

The Longer LK10 Plus is a 3D printer designed for quick and convenient project completion. It offers a print volume of 320 × 320 × 400 mm, print speeds of up to 500 mm/s and a Direct Drive extruder with a flow rate of up to 25 mm³/s. A nozzle that reaches 300°C and a plate heated to 110°C allow the use of PLA, PETG, ABS, ASA and TPU filaments. Automatic leveling, Auto Z-Offset, filament end detection and resumption after power failure make the operation more convenient. Wi-Fi, LAN and USB connectivity, in addition to compatibility with Windows and Mac, allow convenient print management.

Fast Direct Drive Extruder

The printer is equipped with a Direct Drive extruder with a precision gear mechanism that ensures a smooth material supply even during high speed printing. The High-Flow Hotend system achieves a volume flow rate of up to 25 mm³/s, allowing high-quality models even with more demanding projects. A maximum print speed of up to 500 mm/s translates into reduced printing times without sacrificing detail.

Less vibration and ghosting

The Klipper software, with the Vibration Calibration function, ensures smooth operation of the device. Input Shaping technology reduces wall ghosting and undulation, ensuring that models maintain high accuracy even at high speeds. This solution results in a more aesthetically pleasing appearance of the prints and greater consistency of the details.

Wide range of supported materials

A nozzle temperature of up to 300°C and a printing plate heated to 110°C allow printing with many popular 1.75 mm filaments. The printer supports PLA, PETG, ABS, ASA and TPU, making it suitable for both simple decorative models and more durable functional parts. The adjustable layer height from 0.1 to 0.4 mm allows you to adapt the quality and speed of printing to a specific project.

Automatic Calibration

The LK10 Plus has automatic leveling of the heated plate and the Auto Z-Offset function that automatically sets the correct distance between the nozzle and the printing surface. This solution reduces the need for manual configuration and allows you to start printing more quickly. The operating system “load the filament, click print and walk away” makes the device convenient even for less experienced users.

Sensorless Homing

The printer uses a Sensorless Homing system that homing the X and Y axes without the use of traditional mechanical limit switches. Stepper motors detect resistance and automatically determine the axis position, which simplifies device design and reduces the number of components subject to wear. This solution also contributes to a more stable operation of the entire system.

Secure Printing

The resume function after power failure allows you to continue printing from the last saved layer, reducing the risk of losing hours of work. The filament end sensor monitors material flow in real time and stops printing when an empty filament is detected. The Object Exclusion function allows you to cancel the printing of a single defective model without interrupting work on the remaining parts on the printing plate.

Ease of use and connectivity

An intuitive, multilingual touchscreen simplifies daily operations and provides quick access to settings. The printer supports Wi-Fi, LAN and USB flash drives, allowing you to conveniently transfer files and manage prints in a variety of ways. Compatibility with Windows and Mac systems, in addition to support for STL, OBJ and STEP formats, allows convenient preparation of models in popular software and in the OrcaSlicer slicer.

Metal Construction

The metal frame increases structural rigidity and reduces vibrations during high-speed printing, which positively affects print quality. The printer offers a large print volume of 320 × 320 × 400 mm, making it suitable for larger models and for printing multiple parts simultaneously.

Double Z axis

A dual Z-axis system with two independent motors and trapezoidal screws ensures smooth movement of the head. This solution improves printing accuracy, increases the dimensional repeatability of models, and reduces the risk of X-axis arm sagging during prolonged operation.

Included in the set

• Upper frame module
• Base unit
• Touchscreen
• Filament holder
• Power cable
• Test filament
• Slotted screwdriver
• Allen keys
• USB flash drive
• Straps
• Screws M5x45 (4 pieces)
• M4x20 screws (4 pieces)
• Screws M5x20 (2 pieces)
• Screws M5x10 (2 pieces)
• M3x6 screws (2 pieces)
• Flat washers
• Stabilization bracket
