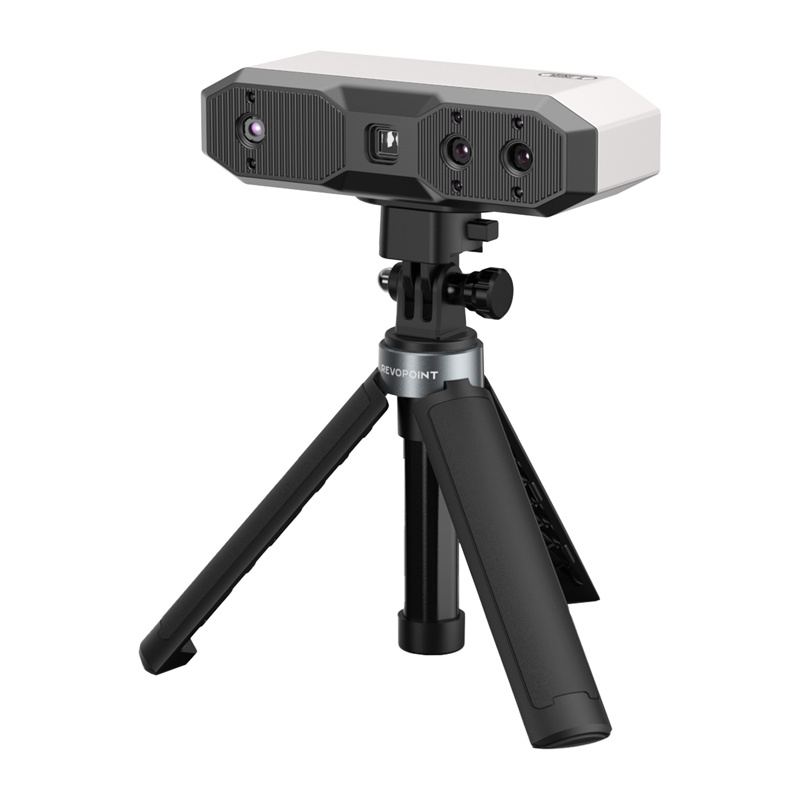

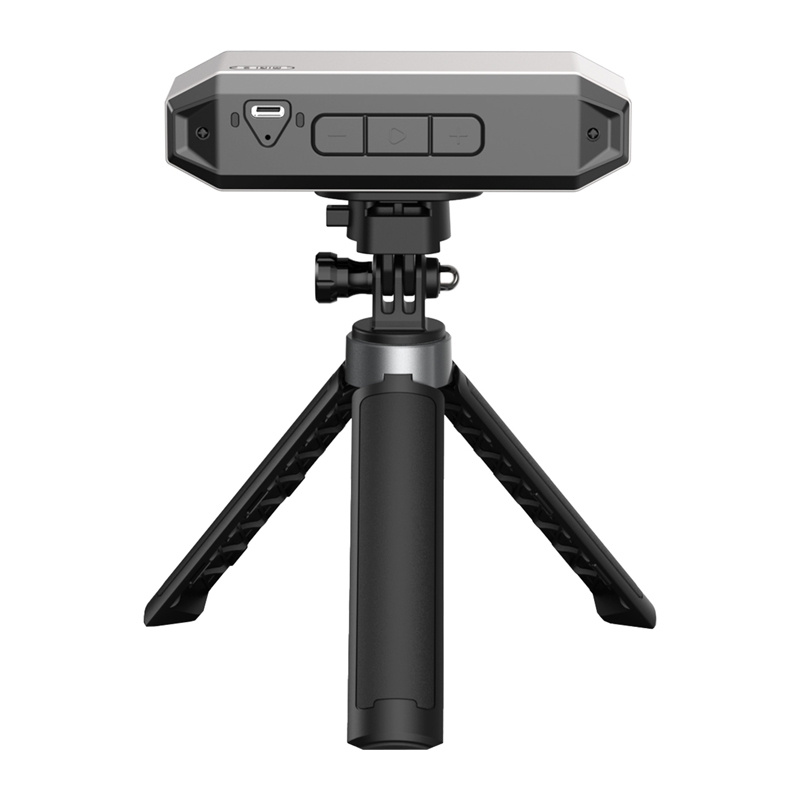

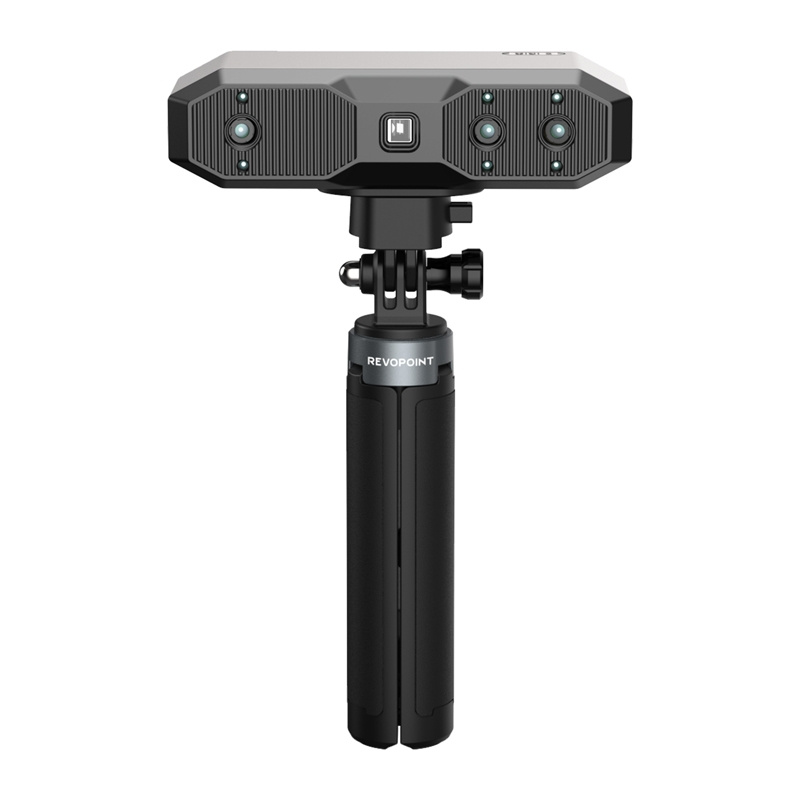

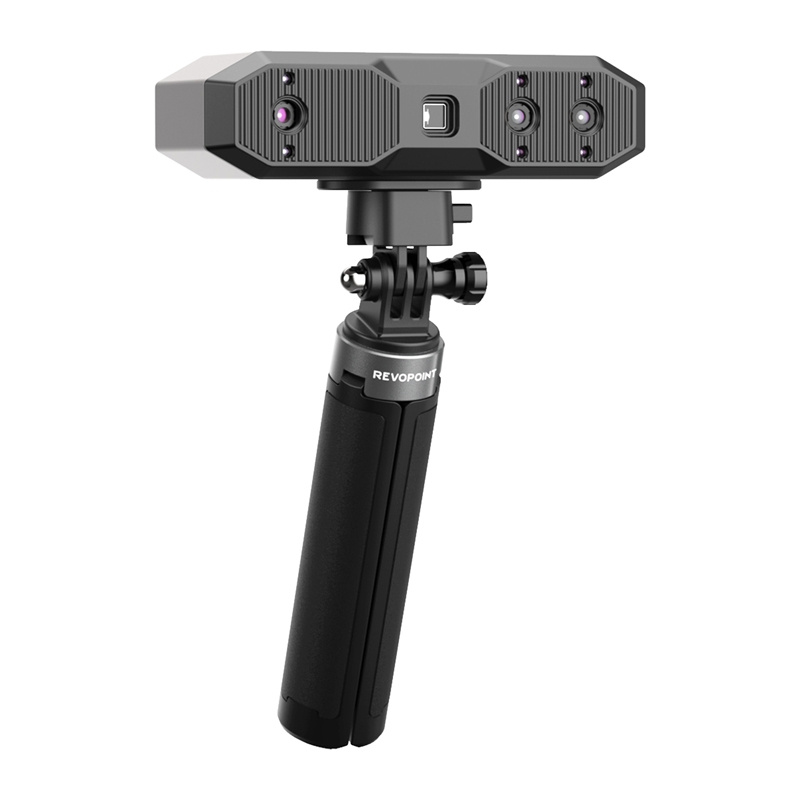

REVOPOINT Mini 2 3D Scanner — Advanced Edition

REVOPOINT Mini 2 Standard Edition 3D Scanner

The Revopoint MINI 2 Advanced Edition is a high-precision 3D scanner designed to digitize small objects with a metrological accuracy of up to 0.02 mm. It uses dual camera technology with blue structured light, offers a 2 MP camera resolution, a scan rate of up to 16 frames per second, and 9-axis IMU-based stabilization. With a working range of 120 to 250 mm and the ability to scan in color, the device is ideal for jewelry, quality control, game modeling, medicine and the digitization of historic artifacts. The compact housing, weighing only 175 g, together with USB-C and Wi-Fi 6 connectivity, ensures convenient operation with both computers and mobile devices.

Accuracy that captures the smallest details

The REVOPOINT MINI 2 has been designed for applications where every detail matters. Single-frame accuracy of up to 0.02 mm and accuracy of up to 0.05 mm allow for the reproduction of fine details, textures and shapes. This makes the scanner ideal for creating jewelry models, small technical parts, collectible figurines or components that require precise dimensional control.

Structured blue light for clear and stable scans

The dual camera technology with blue structured light uses user-safe Class 1 blue light to capture sharp and detailed data. This solution is particularly effective when scanning small objects, where standard scanners often fail to capture fine details. The result is more accurate 3D models ready for further processing or printing.

Fast scanning at up to 16 frames per second

A scan rate of up to 16 fps significantly reduces model creation time. The scanner captures consecutive frames smoothly, allowing you to obtain a complete 3D model faster and making it easier to work on projects that require frequent scanning. This is especially important in professional applications where both accuracy and time savings matter.

Flexible working range for small items

The MINI 2 operates at a distance of 120 to 250 mm, ensuring convenience in scanning objects of various sizes. At the closest distance, it captures an area of 52 × 64 mm, and at the maximum distance, up to 168 × 132 mm. This allows you to adjust the settings according to the size of the object and to achieve an optimal balance between detail and scan range.

Stable tracking thanks to a 9-axis IMU

The integrated 9-axis IMU reduces the impact of vibrations and accidental movement during operation. More stable tracking means fewer errors and smoother frame merging, which results in more accurate models and more convenient operation, even during manual scanning.

2 MP color scan

In addition to geometric data, the scanner also captures the colors of the object. 2-megapixel RGB cameras allow the creation of realistic models that better show the texture and appearance of the scanned objects. This is useful for presentations, archiving, and visual projects.

Ready for 3D printing and compatible with popular software

The REVOPOINT MINI 2 saves models in PLY, OBJ, STL, ASC, 3MF, GLTF and FBX formats, allowing perfect integration with most CAD programs, modeling applications and slicers for 3D printing. It supports Windows 10 and 11, macOS, Android and iOS, offering great flexibility to work on various devices.

Lightweight and portable design

With dimensions of 132 × 53 × 36 mm and a weight of only 175 g, the scanner is comfortable to carry and use on a daily basis. Its compact size and modern USB Type-C and Wi-Fi 6 connectivity allow you to get started quickly without complicated configurations.

Included in the package

• REVOPOINT MINI 2 3D Scanner
• Tripod
• Phone support
• USB-A to USB-C cable
• 2-in-1 cable for mobile devices
• USB Type-C adapter
• Mini turntable
• Swivel flat lid
• Power cable for turntable
• Carry case
• Calibration card
• Positioning markers x 500
• Mounting weight
• Test model
• Quick guide
• Certificate and warranty card
• Two-axis automatic turntable
