Revopoint Miraco 3D Scanner

Revopoint Miraco 3D Scanner

Immerse yourself in a new era of mobile 3D scanning with the Revopoint Miraco, an ultra-lightweight, completely wireless scanner that works continuously for up to two hours on a single charge. The four-camera depth system allows you to seamlessly switch from mapping fine details (0.02 mm) to scanning large objects at high speed (0.2 mm), available in Single Shot and Continuous Shot modes. A powerful 2.8 GHz octa-core processor, 16 GB of RAM and 256 GB of internal storage accommodate up to 10,000 frames, while a 6-inch 2K AMOLED screen with 180° adjustment and advanced post-processing capabilities allow you to work without a computer. Photorealistic colors are provided by a 48 MP RGB camera, while a 9-axis IMU, IP45 certification and Wi-Fi 6 guarantee reliability in all conditions. Discover how easy it is to transfer reality to the digital world!

Wireless freedom and compact design

The Revopoint Miraco revolutionizes the approach to 3D scanning, combining unparalleled mobility with a lightweight body that weighs only 750 g. With an integrated 5,000 mAh battery and 50 W fast charging technology, the device works continuously for about two hours and only takes a moment to renew its power. This means you can completely forget about cables and fixed workstations: scan wherever you want, without compromise.

Endless possibilities for details and scale

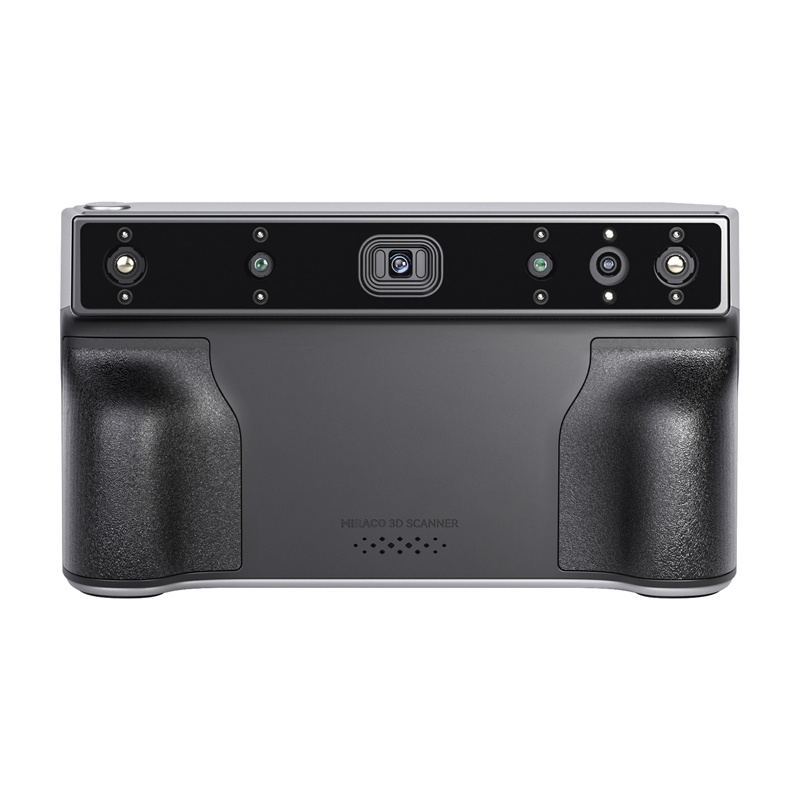

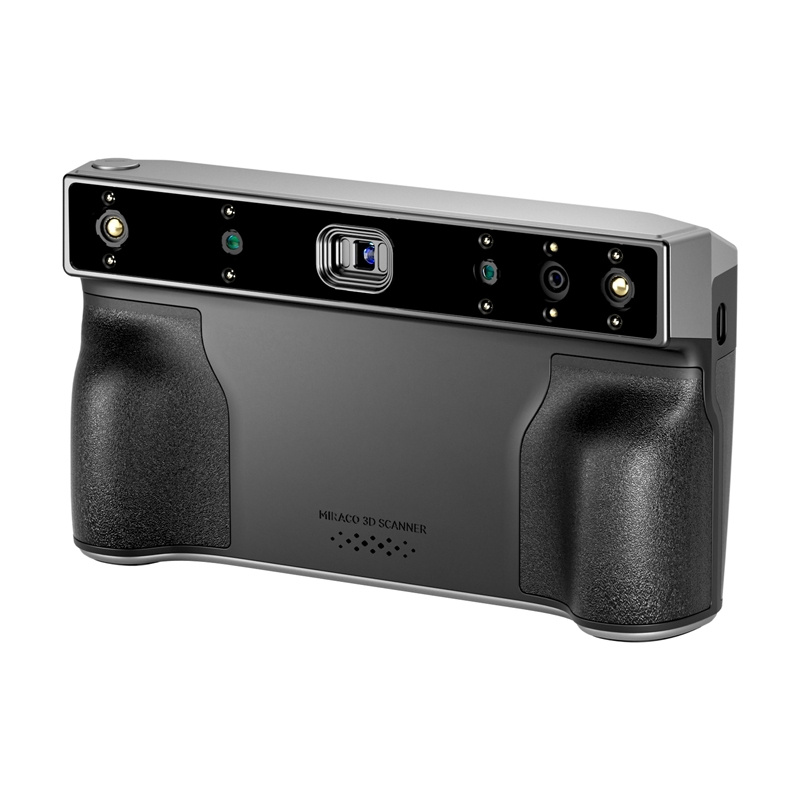

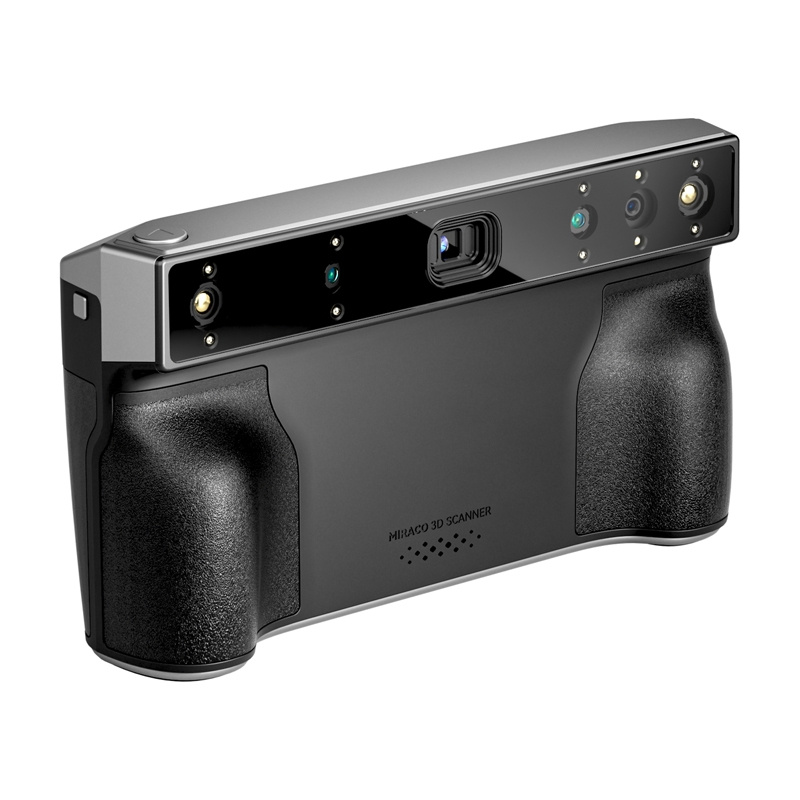

With its Quad Depth Camera system, Miraco seamlessly transitions from capturing the smallest features (for example, a 33 × 10 × 10 mm screw) to imaging large objects (such as a 600 × 138 × 220 mm silencer). This dynamic combination allows the scanner to maintain surgical accuracy of up to 0.02 mm in a single shot, while scanning larger shapes within 0.2 mm, without having to change equipment or prepare different modes.

Two-speed image acquisition

In situations that require detailed imaging of complex surfaces, Single Shot mode eliminates problems of loss of tracking and difficulty with contrasting textures. When, on the other hand, speed is a priority, Continuous Shot mode allows you to work at up to 15 frames per second, significantly accelerating the process of creating 3D models of small and large objects.

Uncompromising independence

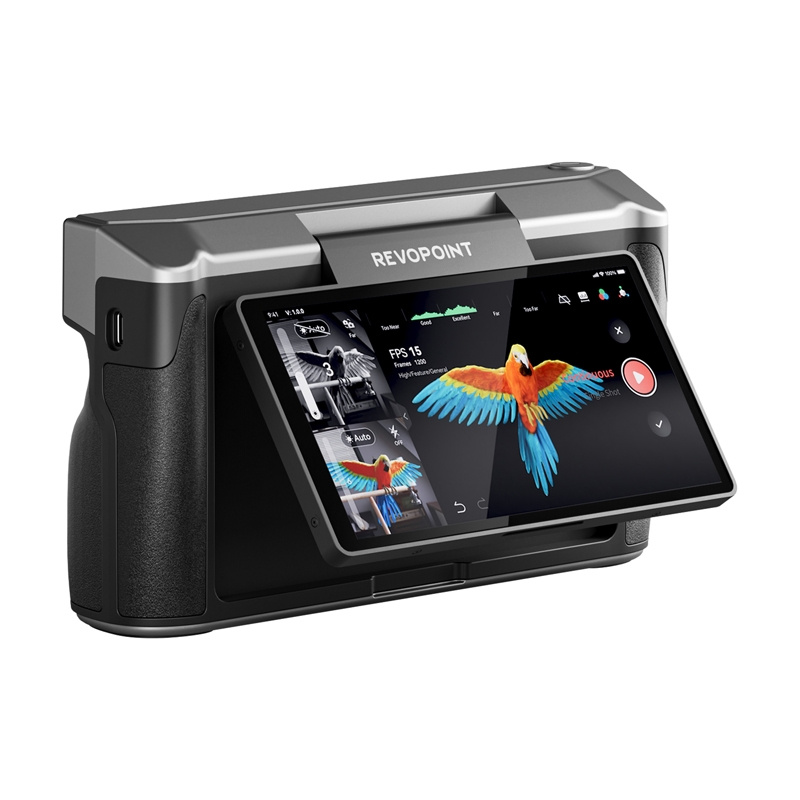

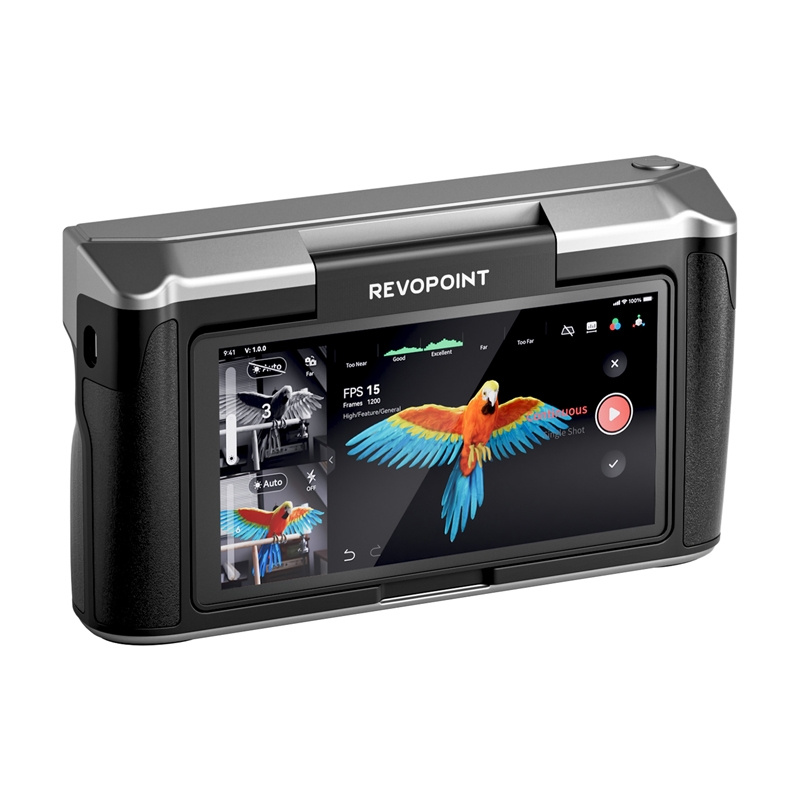

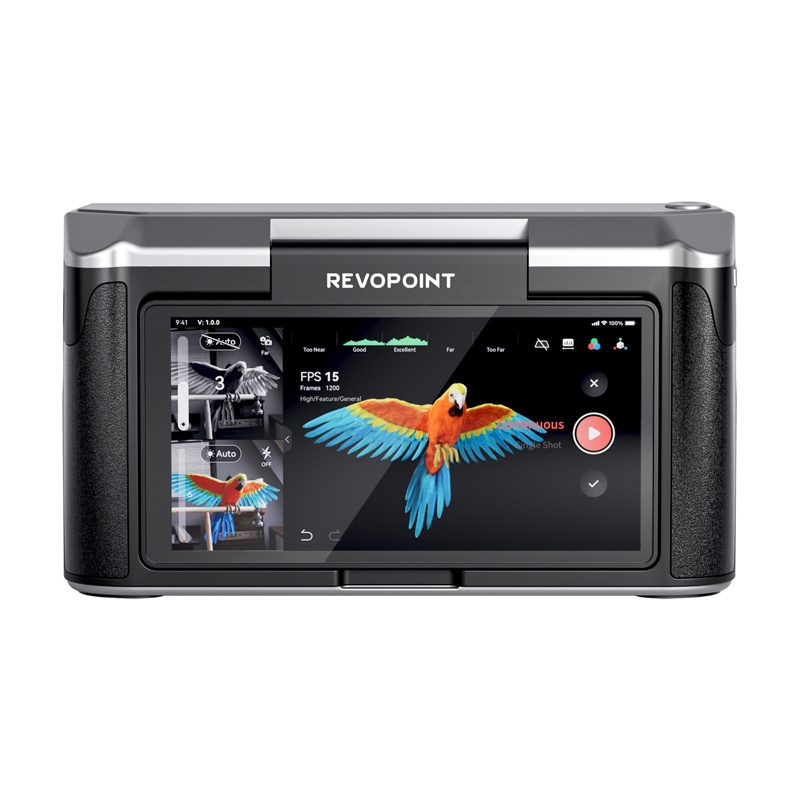

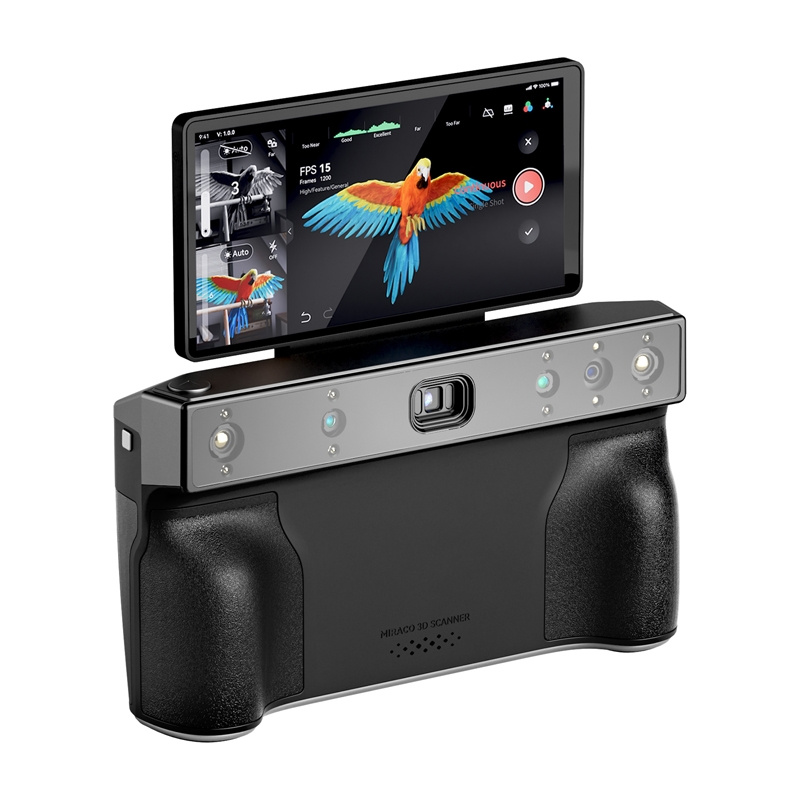

The Miraco is equipped with a 2.8 GHz octa-core processor, 16 GB of RAM (random access memory, main memory) and a 256 GB disk, allowing you to store up to 10,000 frames, including 4,000 color scans. Advanced point cloud processing and model editing capabilities are available on the device: you don't need a computer to view the scan results. Everything is displayed on a 6-inch 2K AMOLED screen (Active-Matrix Organic Light-Emitting Diode, an advanced display technology that uses organic light-emitting diodes), which you can adjust to 180°, adapting the frame to any measurement situation.

Photorealistic colors and security features

The 48 MP RGB-quality camera used on the Miraco ensures vivid and accurate color reproduction in both single shot and continuous modes. In addition, a nine-axis IMU (Inertial Measurement Unit, a module that measures the acceleration and angular velocity of an object in space using accelerometers and gyroscopes) ensures stable and accurate motion tracking, and the IP45 certification allows operation at temperatures from -10 °C to 40 °C, making the scanner ready for extreme conditions. Wi-Fi 6 support and the facial scan function for selfies expand the device's applications, making it a valuable tool for engineers, designers, and content creators.

inclusive

• Miraco Scanner
• tripod
• mini swivel plate
• bust (to test the scan)
• swivel plate lid
• power cable for turntable
• carrying bag
• calibration plate for close up scans
• “Magic Mat” x2
• wrist strap
• USB Type-C dual input adapter
• USB Type-C to C cable (1.8 m)
• cleaning cloth
• stickers
• user manual
