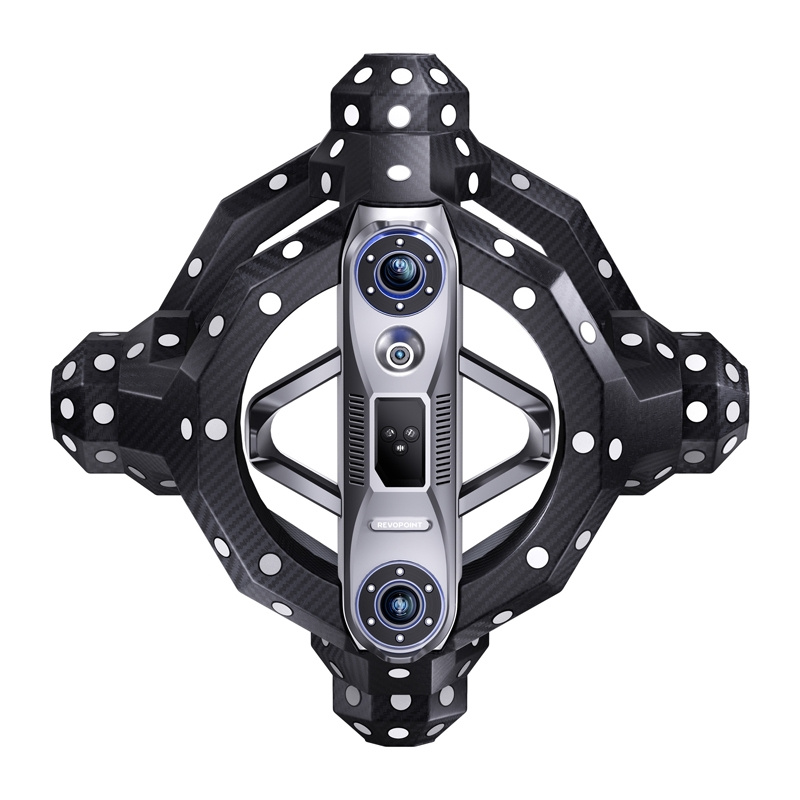

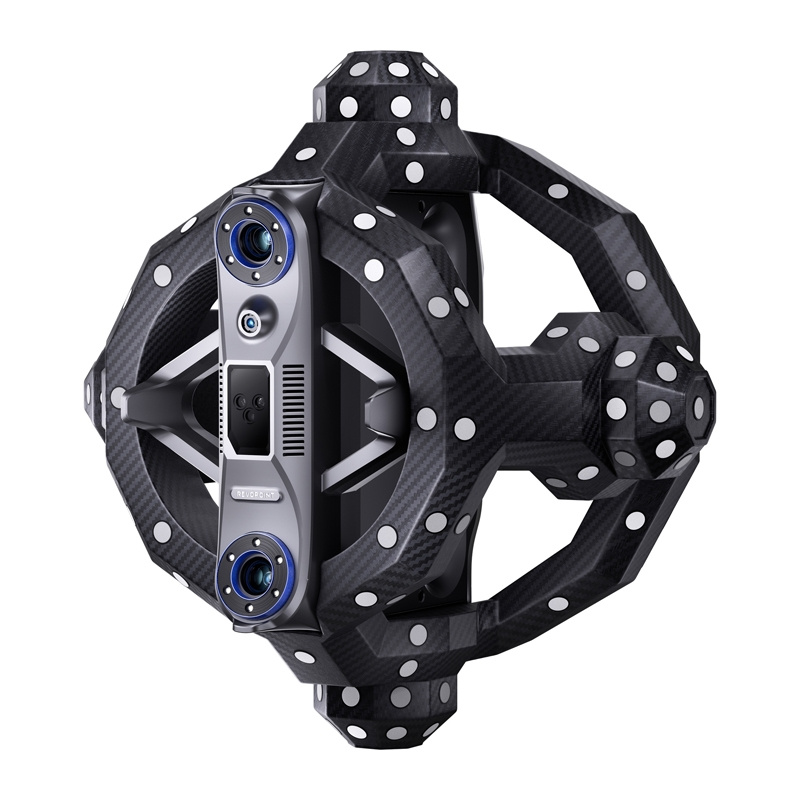

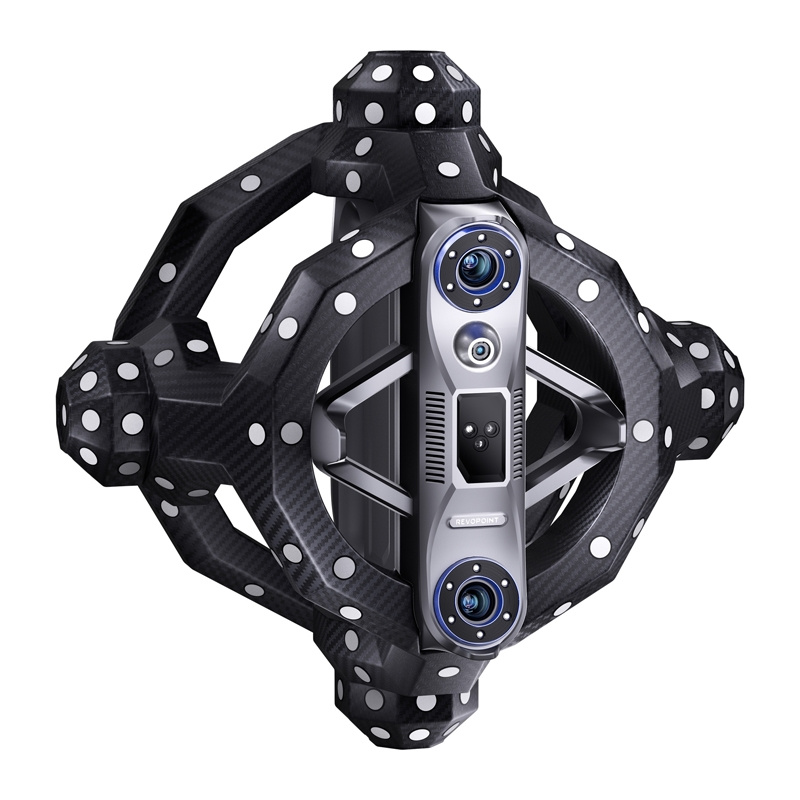

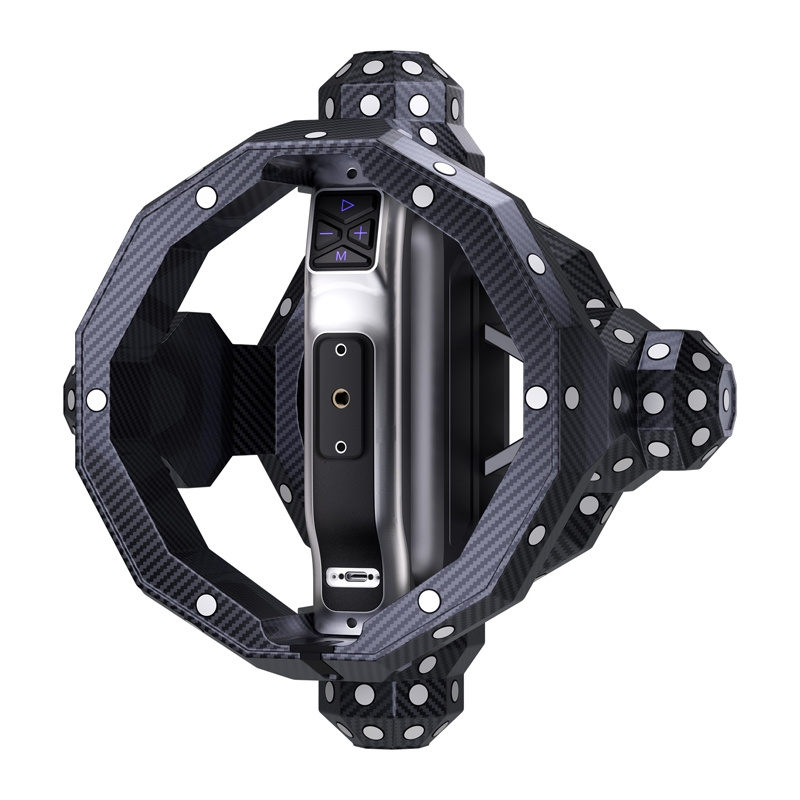

Revopoint Trackit High Precision Optical 3D Scanner

Revopoint Trackit Optical 3D Scanner

Metrological accuracy, complete mobility and intelligent object tracking in real time: Revopoint Trackit is a complete 3D scanning system that combines a 0.02 mm precision optical scanner with an advanced tracker for spatial tracking. It is designed for engineers, CAD designers, quality control specialists, and industrial companies. Trackit offers fast, stable and repeatable scanning of both small components and large objects, without the need for markers. An integrated automatic calibration system, intelligent gimbals, and dedicated Revo Trackit software ensure high accuracy and convenience in a variety of measurement environments.

Accuracy without compromise

Revopoint Trackit offers a measurement accuracy of 0.02 mm and a distance between points of up to 0.05 mm, allowing you to map even the smallest surface details. A set of depth cameras supported by blue lasers (30 lines and 1 single line) is responsible for the measurement, ensuring high precision and stability. The data obtained can be exported to the most popular formats such as PLY, OBJ, STL, ASC, 3MF, GLTF or FBX for further use in design and engineering software.

Operating speed and fluidity

The system achieves scanning speeds of up to 1,500,000 dots per second, allowing an efficient digitization of the object. Thanks to the intelligent tracking of the scanner's movement in space, you can work fluidly, without markers and without the need to maintain a perfectly fixed position. The Track Scan mode allows real-time recording of the scanner's position and angle, ensuring accurate merging of point clouds even during dynamic movements.

Automatic calibration

The Revopoint Trackit optical 3D scanner eliminates complicated configuration procedures using two gimbals with automatic calibration (Dual-Axis Gimbal System). The tracker and scanner automatically adjust their position to each other, ensuring a consistent geometry of the measurement system. The calibration process can be started directly in the software: the system automatically recognizes the calibration arrays and synchronizes the camera parameters.

Ready to work in any situation

Both the scanner and the tracker are made of lightweight but durable materials: the carbon fiber frame and polycarbonate housing offer resistance to mechanical damage and a long life. The devices weigh 1.2 kg and 1.8 kg respectively, operate in a temperature range of 0 to 40 °C and can be easily mounted on the included tripods. You will transport everything in special cases with wheels, so that the set remains completely mobile and ready to use both in the metrology laboratory and in an industrial environment or workshop.

Versatile scanning modes

Revopoint Trackit offers different operating modes to adapt to different measurement scenarios. In Track Scan mode, the scan takes place in real time without markers, which works well for small and medium-sized objects. Multi-Position scanning allows large models, such as body parts or machine components, to be divided into sections and automatically combined into a single point cloud. For complex surfaces, the Marker Scan mode is available, which uses magnetic or self-adhesive markers to increase reading stability. Regardless of the mode selected, finished models can be saved in the most popular PLY, OBJ, STL, ASC, 3MF, GLTF or FBX formats for use in CAD, CAM and 3D software.

Revo Trackit Advanced Software

The Revo Trackit application is the center for managing the entire scanning process. It allows the automatic adjustment of the exposure of depth cameras and the real-time display of the distance and quality of the collected points. It also allows you to pause the scan, check its progress, and resume work at any time. The system automatically merges the point clouds and generates a model grid, accelerating the preparation of the final file. Once the scan is complete, you can easily generate a 3D model, perform basic mesh processing and export the data in the chosen format.

Professional applications

Revopoint Trackit is designed for engineering, industrial and design applications. The system is ideal for quality control and metrology, allowing for precise geometric analysis and mapping of component shapes. It is also a valuable tool in reverse engineering, allowing the digitization of components without technical documentation. It opens up a wide range of possibilities in prototyping and CAD design, facilitating the transfer of real objects to a digital environment. With support for objects from 10 mm to 6 m in size, Revopoint Trackit is used in industry, technical education or scientific research, offering high precision and flexible operation.

Equipment ready for superior performance

To take full advantage of Revopoint Trackit, we recommend a configuration that includes Windows 10 or 11 (64-bit), a 12th generation Intel Core i9 processor or later, 64 GB of RAM, and an NVIDIA RTX 4060 graphics card with 8 GB of VRAM or higher. The device works only with x86_64 architecture and requires a connection via USB 3.0 or later to ensure adequate transmission stability and smooth processing during scanning.

Included:

• Tracker
• Scanner
• Gimbal for automatic tracker calibration (dual axis)
• Gimbal for automatic scanner calibration (dual axis)
• Tracker tripod
• Scanner tripod
• Calibration table tripod
• Scanner adapter
• Calibration table
• Calibration rod
• Power supply
• PC cable
• Scanner cable
• Gimbal scanner cable
• Gimbal tracker cable
• Cable ties
• Magnetic markers
• Anchor block (magnetic)
• Positioning mat
• USB flash drive
• Tracker carrying case (with wheels)
• Scanner carrying case (with wheels)
• Quick Start Guide, Certificate and Warranty Card
