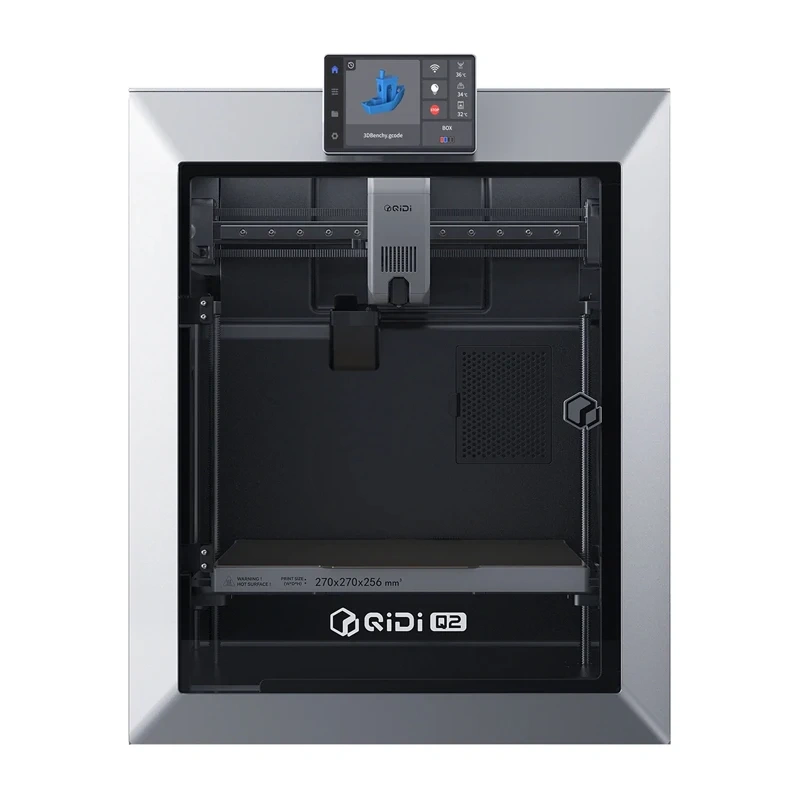

Qidi Q2 3D printer

Qidi Q2 3D printer

The Qidi Q2 3D printer is an advanced CoreXy-based device with a print volume of 270 × 270 × 256 mm, a print speed of up to 600 mm/s and an acceleration of up to 20,000 mm/s². It offers a nozzle temperature of up to 370°C and a closed, actively heated chamber of up to 65°C, allowing you to work both with basic filaments such as PLA and with more demanding engineering materials. Automatic leveling without offset, intelligent functions and a stable design ensure that the device is ready for use almost immediately, without lengthy configurations or tests.

Accurate first layer without manual calibration

The leveling system, which uses the nozzle as a sensor, eliminates the need to manually adjust the offset and height of the first layer. Thanks to direct contact with the surface of the printing plate, the printer achieves a measurement in real time, resulting in greater accuracy. In practice, this means fewer errors at the start, better model adhesion, and greater print repeatability, especially for larger or more demanding projects.

Speed that actually reduces processing time

The combination of speeds of up to 600 mm/s with an acceleration of 20,000 mm/s² allows the printer to quickly reach full operating speed and to move efficiently even with frequent changes of direction. This has a direct impact on model production times, especially for those with complex geometries. Shorter printing times mean greater productivity, which is important both for hobby work and for the production of larger quantities of parts.

Improved surface and quality of details

The new 1.5GT belt with higher tooth density improves the precision of the axis movement and the resonance control system reduces vibrations generated during operation. This minimizes wall undulations and layer visibility. As a result, prints are smoother and details are better reproduced, which is important for visual elements and parts that require precision.

Stable construction and long-lasting precision

The metal frame in the CoreXY design and the linear guides ensure high rigidity and wear resistance. This construction minimizes mechanical play and improves the accuracy of the printhead positioning. As a result, the printer maintains stable operating parameters even during intensive use, which translates into repeatability and reduced need for maintenance.

Ready for engineering materials

The chamber heated to 65°C maintains stable temperature conditions during printing. This is especially important for materials such as ABS, ASA or PC, which are sensitive to changes in temperature and can deform. Better control of the printing environment improves adhesion between layers, resulting in stronger and more durable prints.

High temperature printhead and durable components

A hotend that reaches up to 370°C allows printing with a wide range of filaments, including engineering materials. An improved cooling system reduces the risk of clogging, resulting in more stable operation. A bimetallic hardened steel nozzle increases wear resistance, which is essential when working with filaments containing fibers. A dual transmission extruder ensures a uniform material feed, which affects the quality of the entire print.

Print control and device protection

The integrated AI camera monitors the printing process in real time and detects “spaghetti” errors - situations in which the model stops building properly. In these cases, the printer can automatically pause the operation, minimizing material waste and preventing further problems. In addition, the device supports filament end detection and entanglement detection (using the QIDI BOX, which can be purchased separately), which protects the process from sudden interruptions.

Safe and convenient daily operation

The integrated 3-in-1 filtration system (G3 pre-filter, HEPA H12 and activated carbon) reduces dust and odors generated during printing, improving comfort when working in closed spaces. The NFC system automatically recognizes compatible filaments and selects the appropriate settings, simplifying use. In addition, temperature sensors and PTC protection continuously monitor the operation of the device and interrupt the power supply in case of anomalies, improving safety during use.
