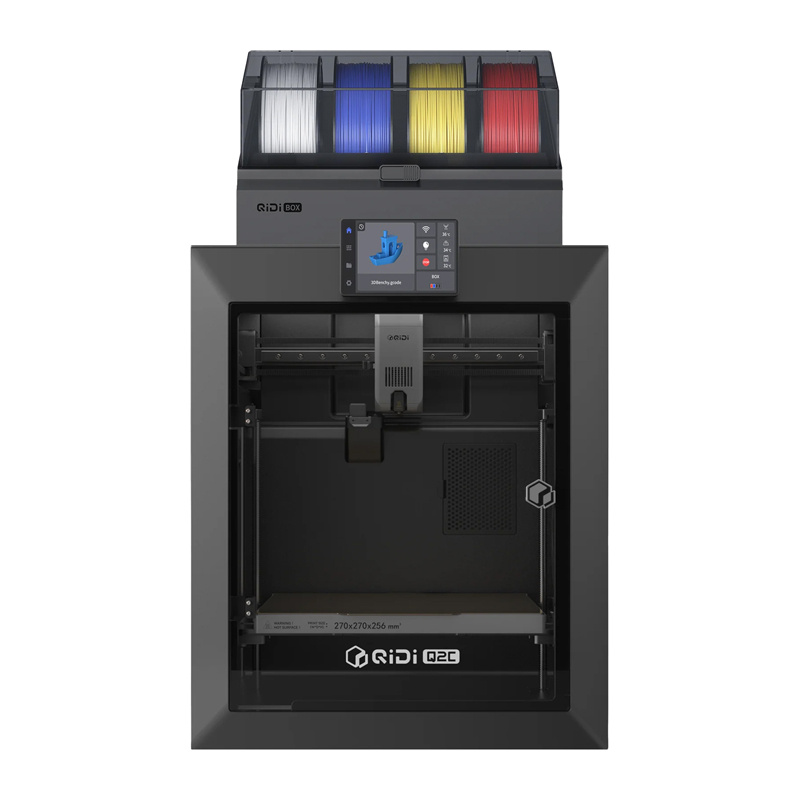

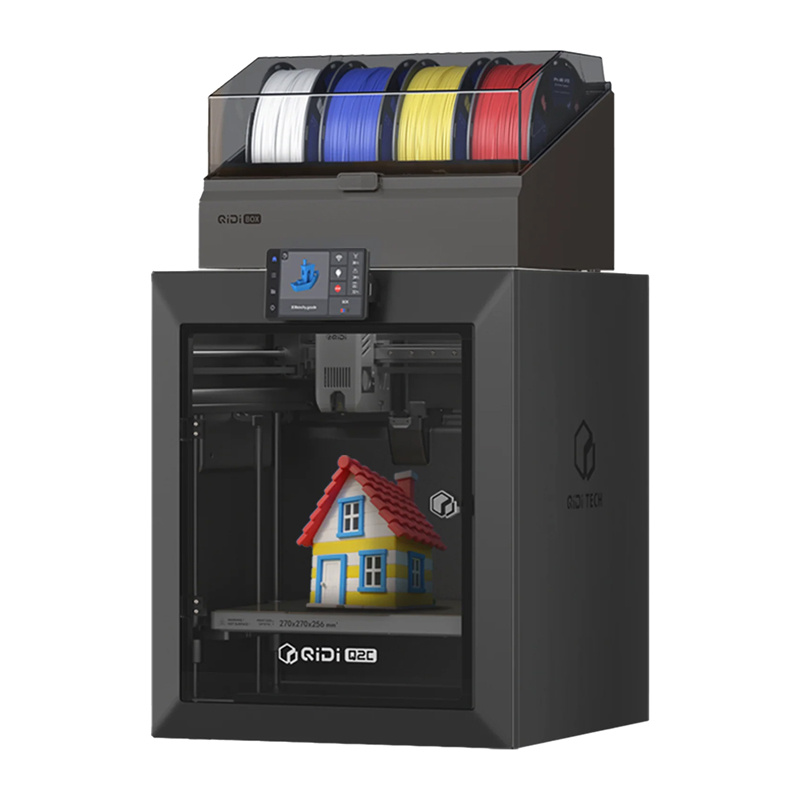

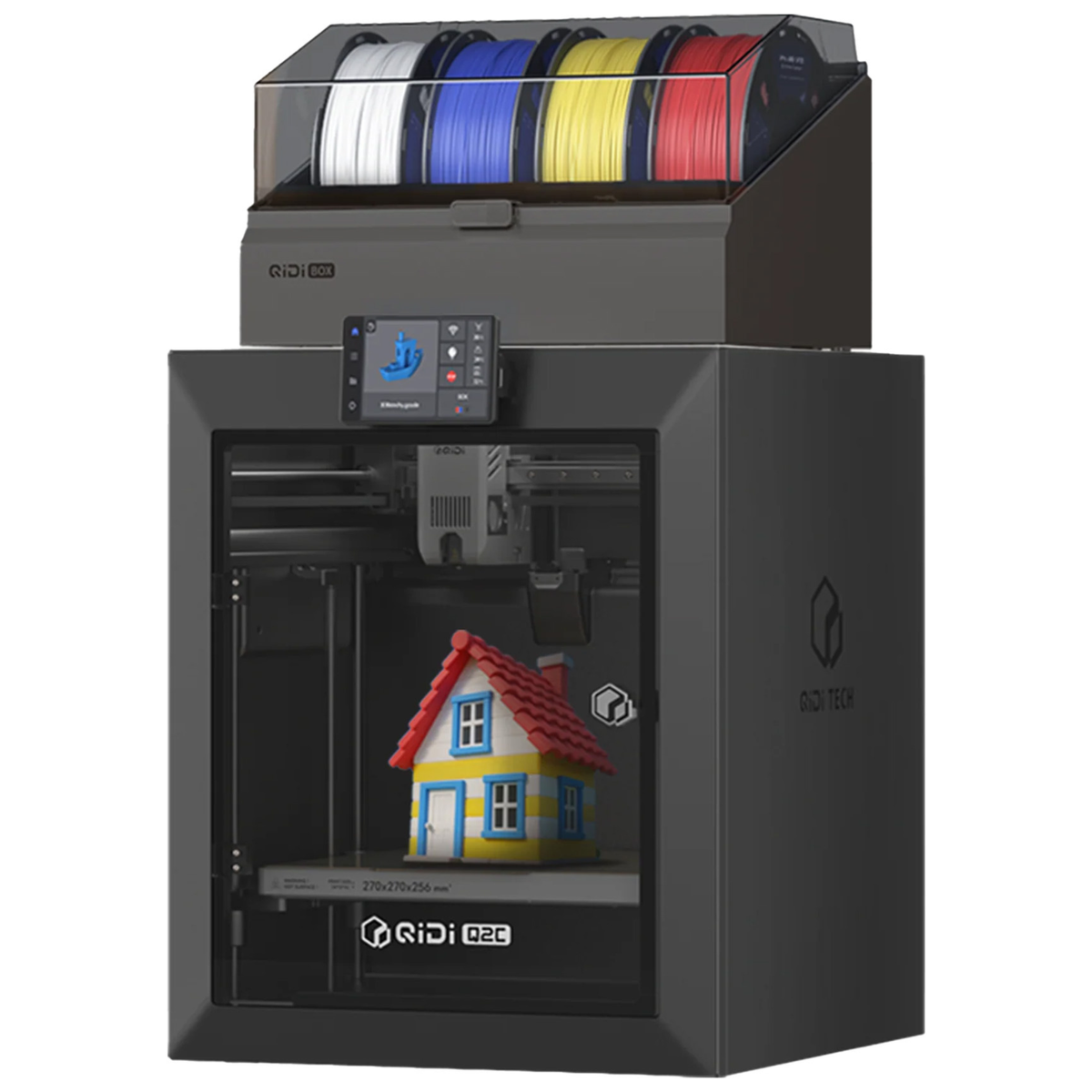

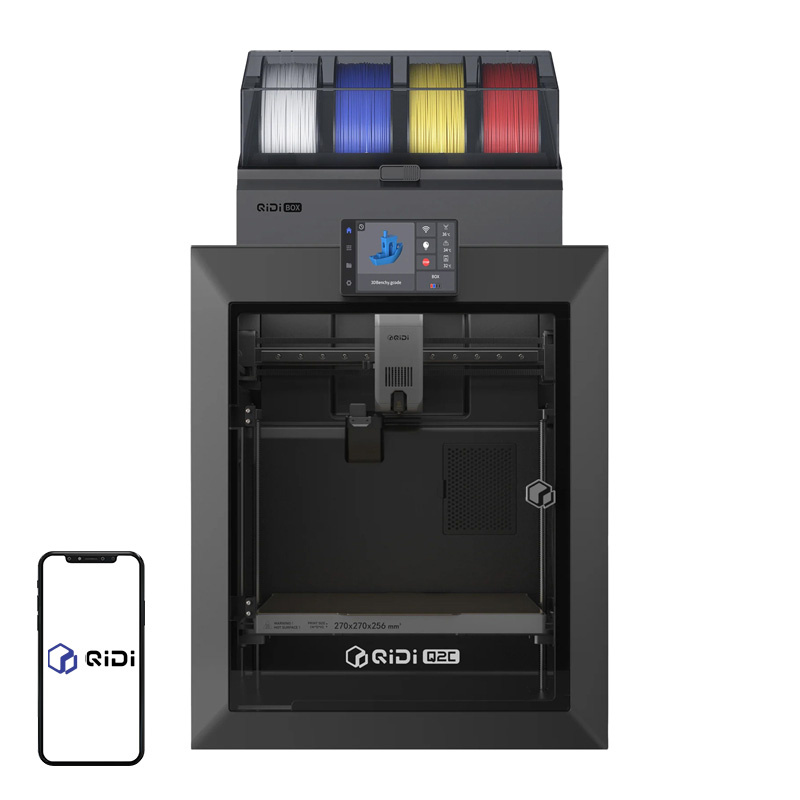

QiDi Q2C Combo 3D Printer

QiDi Q2C Combo 3D Printer

The QiDi Q2C Combo printer is a modern device designed for fast and accurate 3D printing. It offers a large working space, a high operating temperature of the hotend and a stable CoreXY construction, making it suitable for both hobby projects and more demanding technical applications. With support for multiple types of filaments and the ability to work with the QIDI Box system for multicolor printing, the printer offers great freedom in creating models.

Large work space

The QiDi Q2C Combo offers a 270 × 270 × 256 mm working area, allowing you to print larger pieces or multiple models at the same time. This workspace gives you more design freedom and reduces the need to divide models into smaller parts. The stable construction of the device, with dimensions of 402 × 438 × 494 mm, ensures adequate rigidity during operation.

Next generation automatic leveling

The printer uses a modern leveling sensor where the nozzle itself acts as a sensor. This means direct contact with the surface of the work surface, eliminating the problem of probe misalignment and measurement errors. The system works regardless of the type of floor surface or environmental vibrations, ensuring that the first layer is accurate and repeatable. This simplifies printer configuration and makes the leveling process automatic.

High speed and precision of movement

The QiDi Q2C Combo features a CoreXY design and a new 1.5GT drive belt with a higher tooth density. This solution improves the fluidity of movement and reduces vibrations that can affect print quality. The printer achieves a head speed of up to 600 mm/s and an acceleration of up to 20,000 mm/s², significantly reducing printing times without compromising accuracy.

Modern hotend up to 370°C

The new generation hotend allows it to operate at temperatures up to 370°C. The design with a ceramic nozzle and an improved heat dissipation system reduces the risk of nozzle clogging. The hardened steel bimetallic nozzle is wear-resistant, making it suitable for filaments containing carbon or glass fibers.

Support for more materials

The printer supports a wide range of filaments with a diameter of 1.75 mm. It is possible to print with popular materials such as PLA, PETG and ABS, but also with more demanding materials such as ASA, TPU, PA and PC. Thanks to its durable nozzle and steel extruder gears, the printer can also handle filaments reinforced with carbon fibers or glass.

Stable work platform

The model is equipped with a heated worktop with an aluminum base that reaches a temperature of up to 120°C. Its surface has a double-sided magnetic PEI plate, which guarantees good adhesion of the prints during operation and facilitates their rapid removal after printing.

Convenient operation and connectivity

The printer has a 4.3-inch color touch screen that allows intuitive control of the device's functions. It supports Wi-Fi, Ethernet and USB connectivity, making it easy to transfer files for printing. The device works with QIDI Studio software and popular slicers such as Orca and PrusaSlicer. Supported file formats include STL, OBJ, 3MF, STEP, and STP.

Additional features for added convenience

The QiDi Q2C Combo is equipped with a recovery function in the event of a power failure and an end of filament sensor. The printer also supports an optional camera with a timelapse function and an air filter. In addition, it can be used with the QIDI Box system, which allows multicolor printing and control of the material supply.
