Uni-T UT312A Vibration Tester - Professional Vibration Meter
-17%
Exclusive
Online!
Uni-T UT312A Vibration Tester - Professional Vibration Meter
Best online price for Uni-T UT312A Vibration Tester - Professional Vibration Meter.
Brand: Uni-t -
Code: INN_UT312A - Ean: 6935750531228
€ 386.70
€ 464.00
You save € 77.30
(−17%)
Available in stock
Uni‑T UT312A Professional Vibration Tester: measures acceleration (PEAK), speed (RMS) and displacement (P‑P) with instant readings on a self-rotating 2.4” TFT display. Range: acceleration 0.1—199.9 m/s², velocity 0.1—199.9 mm/s, displacement 0.001—1,999 mm. Acceleration range: LO 10 Hz—1 kHz/HI 1 kHz—15 kHz. Flashlight, Data Hold and Auto Shutdown. USB-C rechargeable Li-ion battery (about 12 h). Includes long/short probe and magnetic U-tip.
Description
Uni-T UT312A Vibration Tester - Professional Vibration Meter Description

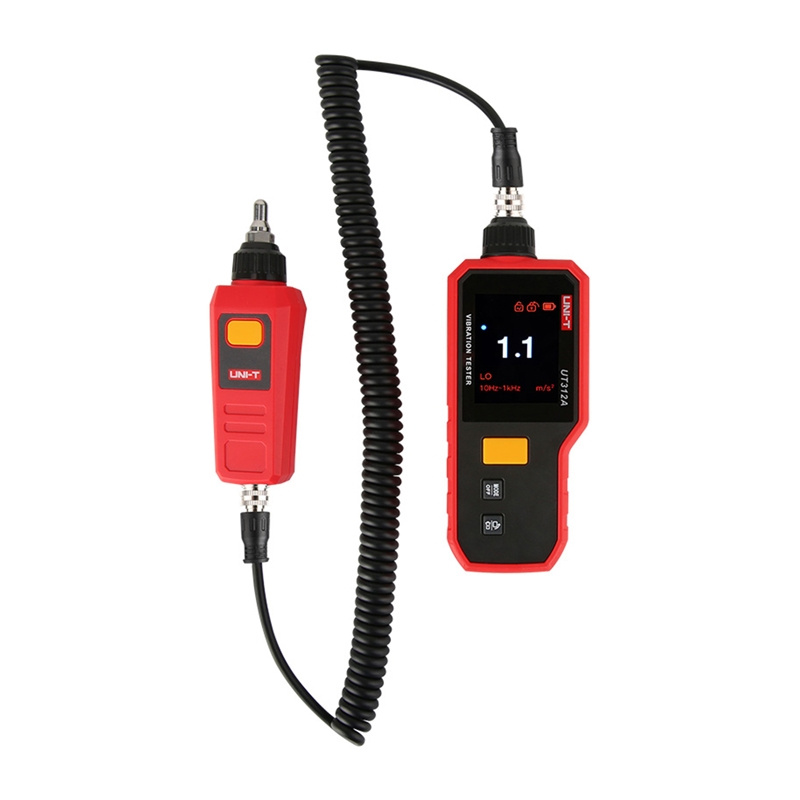

Uni-T UT312A Vibration Meter The Uni-T UT312A
vibration meter is a compact device for monitoring machine conditions that measures acceleration, speed and movement of vibrations with instant readings displayed on a 2.4-inch TFT screen. The device operates in two frequency modes for acceleration (LO: 10 Hz—1 kHz and HI: 1 kHz—15 kHz), allowing you to adapt the measurement to the nature of the equipment's operation. Its compact design, self-rotating screen, integrated flashlight, and USB-C rechargeable battery make the UT312A ideal for field inspections
and routine diagnostics of industrial equipment.
Optimized measurements for different applications
The UT312A offers three key measurement methods: acceleration (PEAK), velocity (RMS) and displacement (P-P), allowing you to evaluate both dynamic vibrations and the general operating conditions of the machine. Separate frequency modes for acceleration (LO and HI) allow a more precise analysis of both slow and fast vibrations, rather than using a single generalized range. The Data Hold function allows you to lock the result on the screen, making it easier to read in less easy conditions. The 1350mAh battery provides up to about 12 hours of operation, and charging via USB-C takes about 3 hours. The weight of about 364 g refers to the device together with the short probe, i.e. in a ready-to-use configuration.
Box contents
- Uni-T UT312A Vibration Meter
- Long Measuring Probe Short Measurement
- Probe
- Magnetic U Tip
- USB-C Charging Cable
- User Manual Safety Instructions Manufacturer
| Acceleration measurement | 0.1—199.9 m/s² | |
|---|---|---|
| Velocity measurement | 0.1—199.9 mm/s | Displacement measurement | 0.001—1,999
| mm | ||
| frequency range | 10 Hz—1.5 kHz Displacement frequency range 10 Hz—1 kHz Resolution 0.1 m/s²/ | |
| 0.1 mm/s/0.001 mm Acceleration accuracy and speed | ± | |
| 5% +2 | ||
| Shift accuracy | ± (10% +2 digits) | |
| 2.4" TFT LCD | display | , automatic rotation, backlight Data Holdfunctions | ,
| flashlight, battery indicator, automatic shutdown after 5 min. 1350 mAh Li-Ion battery | power supply | ,|
| 3.7 V USB-C | charging | , DC 5 V|
| Autonomy | about 12 h||
| Operating conditions | 0°C—40°C, | |
| ≤ 80% RH |
