MINIS FORUM MS-02 Ultra Mini PC Intel Core Ultra 9 285HX Barebone

MINIS FORUM 02 Ultra MiniPC Intel Core Ultra 9 285HX CPU

The MINIS FORUM MS-02 Ultra is a miniPC that redefines the concept of performance in a small form factor. Equipped with an Intel® Core™ Ultra 9 285HX processor with 24 cores and a clock rate of up to 5.5 GHz, it is suitable for a variety of tasks. It allows for extensive expansion: three PCIe slots and four M.2 NVMe SSD connectors are available. Network connectivity is guaranteed by two 25 GbE ports, a 10 GbE port and a 2.5 GbE port.

High performance

At the heart of the computer is an Intel Ultra 9 285HX processor, which offers 24 cores, 24 threads, and 36 MB of cache. With a TDP of up to 140W and Intel AI Boost technology, the hardware can handle not only daily tasks but also projects that require high computing power. Intel integrated graphics with a maximum frequency of up to 2 GHz provides basic multimedia support and high-resolution image display.

Unlimited RAM and data storage

The MINIS FORUM MS-02 Ultra supports up to 256 GB of DDR5 RAM, installed in four SO-DIMM slots. Four M.2 NVMe SSD slots are available for user data: two directly on the motherboard (PCIe 4.0 x4) and two integrated with the 25GbE NIC. Each slot can support a drive with a capacity of up to 8 TB, allowing you to create a very large and fast array with the possibility of configuring RAID 0, 1, 5 or 10.

Effective cooling

To meet the thermal requirements of such powerful components, a heatsink with six heat pipes and two fans, one with a diameter of 70 mm and the other of 60 mm, were used. Even under full load, the device maintains a maximum noise level of 46 dBA at a distance of 50 cm, which results in comfortable operation.

Fast and stable network connection

The model stands out for its flexible connectivity. There are two 25GbE SFP+ ports based on the Intel E810 chip, a 10GbE RJ45 port (Realtek RTL8127), and a 2.5GbE RJ45 port with Intel vPro support. All this is completed by an Intel BE200 wireless card, which offers Wi-Fi 7 and Bluetooth 5.4.

Wide choice of ports

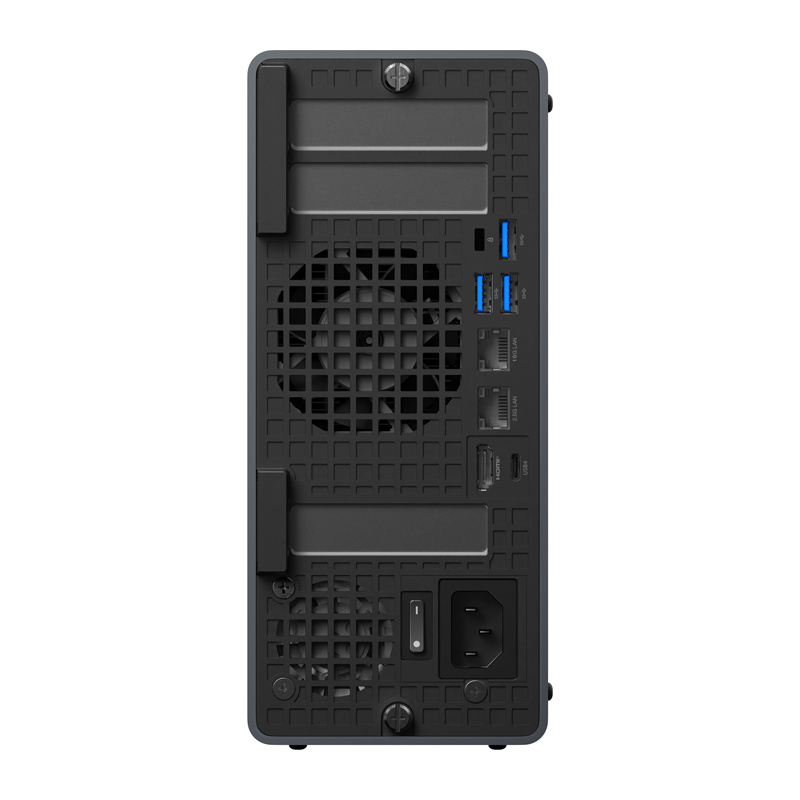

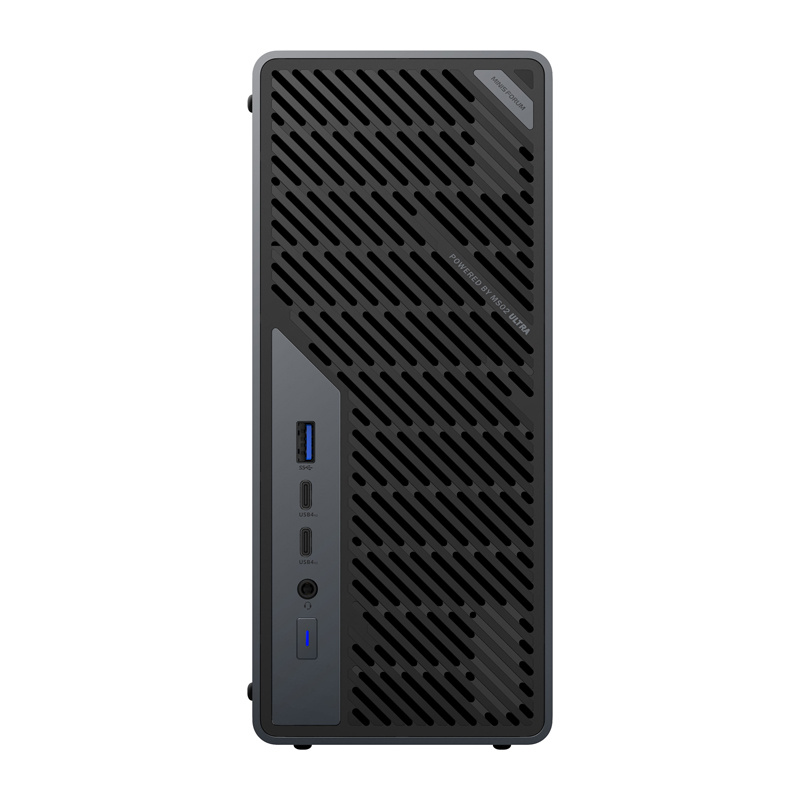

The front of the case is equipped with two USB4 V2 Type-C ports with 80 Gbps bandwidth and support for DisplayPort 2.0 and 15W charging, a 10 Gbps USB-A 3.2 Gen. 2 port, a 3.5 mm audio jack and a power button. The back of the device has three 10 Gbps USB-A 3.2 Gen. 2 ports, a USB4 Type-C (40 Gbps) connector, an HDMI 2.1 FRL, and network ports: x2 25 GbE SFP+; 10 GbE Rj45 and 2.5 GbE Rj45.

Ready to use

The computer is powered by a standard integrated 350W 1U power supply. The model supports Windows 11 Pro and Home, and the set includes all the necessary accessories: power cable, HDMI cable, SSD cooler, protective plate and disassembly tool.

inclusive

• mini PC
• power cable
• HDMI cable
• SSD heatsink
• protective plate
• disassembly tool
• user manual
