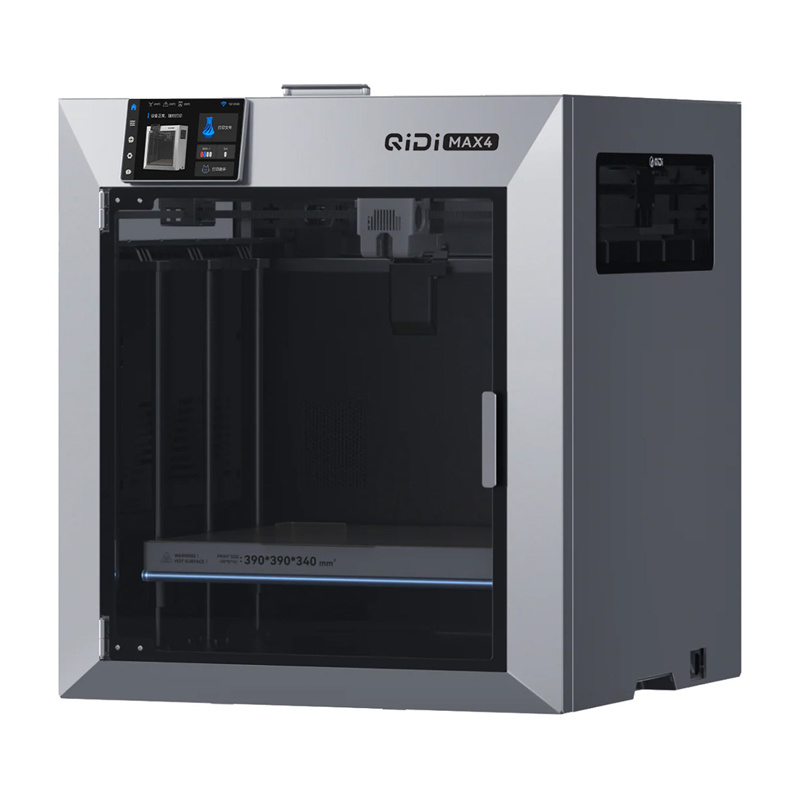

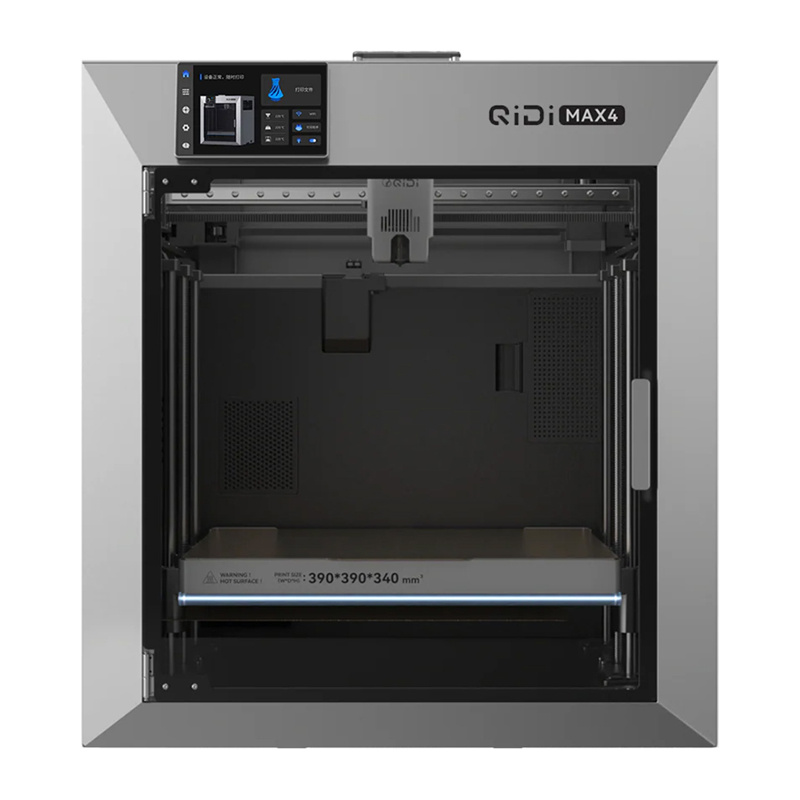

QIDI Max 4 3D printer

QIDI Max 4 3D printer

The QIDI Max 4 is an advanced 3D printer designed for large projects and for working with demanding materials. The large working space, the high temperature of the head and the active heating of the chamber make it possible to print both standard filaments and engineering materials. The CoreXY design, the fast closed circuit motors and the extensive cooling system ensure that the device works quickly, stably and precisely.

Large work space

The QIDI Max 4 offers a working area of 390 × 390 × 340 mm. This large print volume allows you to create large models in a single piece without having to divide the project into smaller parts. This saves you assembly time and maintains the strength of the finished model.

High printhead temperature for technical materials

The print head reaches a temperature of up to 370°C, which allows you to work with a wide range of filaments: from PLA and PETG to the most demanding materials such as PC or carbon fiber composites. The ceramic groove and improved heat dissipation module reduce the risk of nozzle clogging, keeping the print stable even at high temperatures.

Active room heating

The third generation of active chamber heating reaches temperatures of up to 65°C. In combination with the air circulation system, this creates a stable environment for printing materials prone to deformation. As a result, even large models made of PLA or ABS keep their geometry and do not curl at the edges.

Very fast and accurate printing

The use of closed circuit FOC stepper motors increases drive efficiency by up to 65%. The maximum printing speed reaches 800 mm/s and the acceleration reaches 30,000 mm/s². This configuration significantly reduces project completion time while maintaining high accuracy.

Stable CoreXY design

The CoreXY movement system with 10 mm wide 1.5GT straps ensures high stiffness and precision of the head guidance. The X axis uses a high hardness linear guide, the Y axis uses 12 mm steel shafts, and the Z axis uses four guides and two independent motors with trapezoidal screws. This allows the printer to remain stable even with large and heavy models.

Automatic leveling and print control

The printer is equipped with automatic plane leveling with a load cell sensor integrated into the hot end. The monitoring system includes an end of filament sensor, an AI camera, and a function to resume printing after a power failure. This makes the printing process safer and requires less manual control.

Air filtration and convenient operation

The QIDI Max 4 has a 3-stage air filtration system consisting of a G3 pre-filter, a HEPA H12 filter and coconut activated carbon. The printer is also equipped with a 5-inch touchscreen, Wi-Fi and Ethernet connectivity, and a 1080p camera for viewing and recording timelapses of the printing process.

inclusive

• Filament holder with pneumatic head
• Filament roll holder
• Holder cover
• Cash handle
• Spare parts kit
• Mechanism maintenance oil
• 7 mm wrench
• Power cable
• Ethernet cable
• USB flash drive with software and files
• Flat screwdriver
• Work surface adhesive to improve print adhesion
• Allen wrench set (H1.27, H1.5, H2, H2.5, H3)
• Scraper to remove prints from the table
