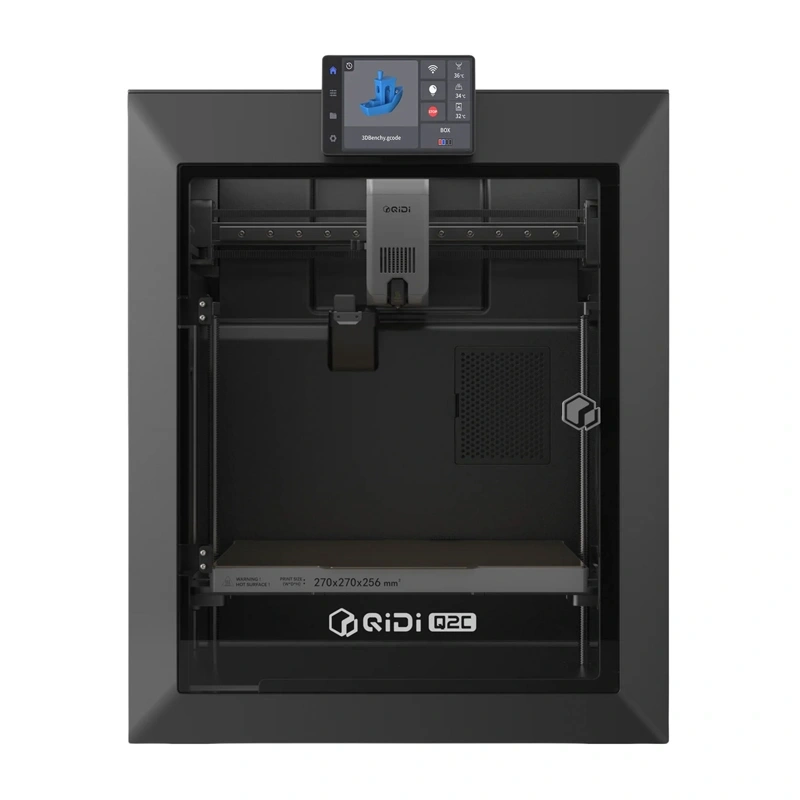

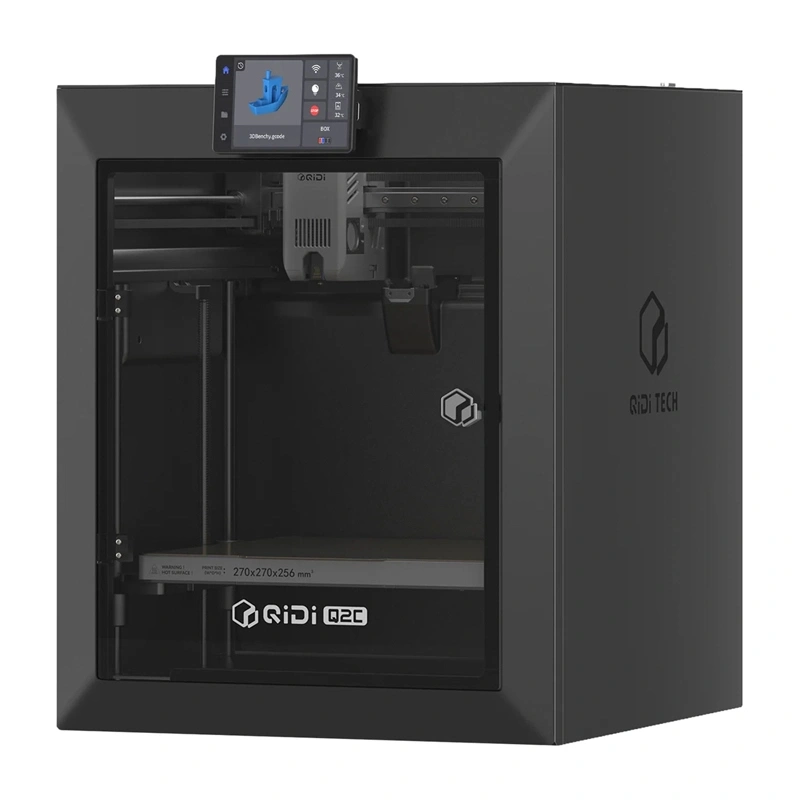

QiDi Q2C 3D printer

QIDI Q2C 3D printer

The QIDI Q2C is a 3D printer designed as a fast and precise tool for working with a wide range of engineering materials, offering a large print volume of 270 × 270 × 256 mm and a high printing speed of up to 600 mm/s with an acceleration of up to 20,000 mm/s². The design, based on a rigid all-metal CoreXY frame, guarantees operational stability even during intense head movements, while the High Hardness Linear Guide Rail system on the X axis maintains a smooth and accurate movement in the long term. The system is completed by a new 1.5GT belt with increased tooth density, which reduces vibrations and improves the surface quality of the prints. Combined with a hotend capable of reaching temperatures of up to 370°C, the printer is ready to handle demanding filaments, including carbon fiber and glass composites and high-temperature materials such as PPS-CF.

Stable CoreXY design and precise movement

The use of an all-metal frame in the CoreXY layout helps reduce vibrations and maintain high structural rigidity even at high operating speeds. In combination with high-hardness linear guides, the X-axis movement remains smooth and repeatable, which directly affects the dimensional accuracy of the models. The transmission system has been optimized to reduce vibration artifacts, resulting in smoother and more uniform printing surfaces.

Extruder and management of demanding materials

The dual feed extrusion system, combined with hardened steel extruder components, ensures a stable and reliable material supply. The design is optimized for use with engineering and abrasive filaments, allowing materials such as carbon fiber or glass composites to be printed without excessive wear and tear on the mechanism. As a result, the device maintains repeatability even during long and demanding projects.

Process automation and ecosystem support

The printer uses a new generation leveling system in which the nozzle acts as a sensor. This allows accurate measurement of the surface of the printing plate without offsets or additional probes, increasing the accuracy of the first layer and reducing the risk of errors. Within the QIDI ecosystem, in combination with the QIDI Box (not included), features are also available to automate filament management, including the intelligent detection of certain system operating conditions, such as material feed issues or filament tangles, which helps reduce the risk of failed prints.

Speed, display and connectivity

The QIDI Q2C is designed as a high-speed production printer, offering print speeds of up to 600 mm/s and high accelerations of up to 20,000 mm/s², which significantly reduce project delivery times. The device is equipped with a 4.3-inch touchscreen that makes it easy to use and control operating parameters. Various connectivity options, including Wi-Fi and Ethernet, are also available, allowing integration into network environments in workshops and production facilities.

Safety and operational control

The security system is based on continuous temperature monitoring and on the use of electronic protections that intervene in the event of detected anomalies. As a result, the printer can automatically shut off power in emergency situations, improving safety during long and demanding prints.
